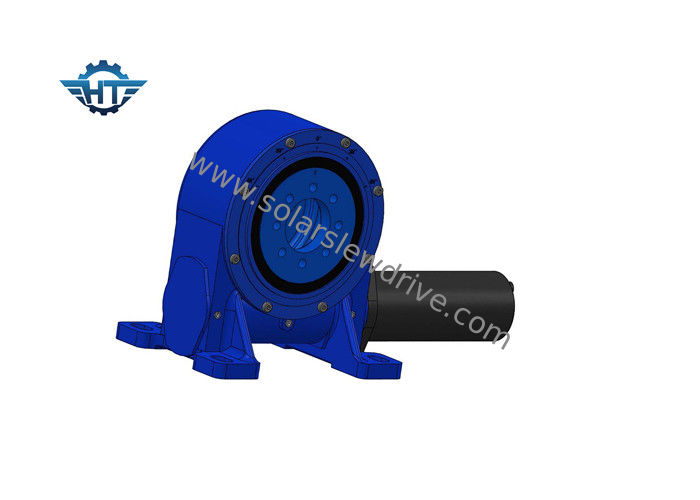

VE9 Reducer Solar Slew Drive For Solar Tracker With Motor For Link Single Axis Trackers

VE9 Reducer Solar Slew Drive For Solar Tracker With Motor For Link Single Axis Trackers

  • VE9 Reducer Solar Slew Drive For Solar Tracker With Motor For Link Single Axis Trackers
  • VE9 Reducer Solar Slew Drive For Solar Tracker With Motor For Link Single Axis Trackers
VE9 Reducer Solar Slew Drive For Solar Tracker With Motor For Link Single Axis Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~380/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Slewing Device: VE9
Gear Ratio: 61:1 Rated Output Torque: 7320 Nm
Holding Torque: 45000 Nm Tilting Torque: 18300 Nm
Efficiency: 40% Standard Color: RAL 9006
High Light:

single Axis trackers slew drive

,

VE9 reducer solar slew drive

,

42CrMo solar slew drive

​VE9 Reducer With Slew Drive Motor For Link Single Axis Trackers





Description



Link single-axis slewing drives rotate around one axis and make the tracking system move from east to west and back to home at night. These products are the easiest to install, and the most commonly used. The VE offers vertical mounting and a fully-enclosed drive IP66 in one high-powered unit.



Advantages



1. Adopt double enveloping technology, multi-tooth contact, high backholding torque and minimize backlash

2. Self-locking to improve the solar tracking system's safety

2. Hard stop inside, ±60°



VE9 Reducer Solar Slew Drive For Solar Tracker With Motor For Link Single Axis Trackers 0



Technical Data of VE Slewing Drives



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.



Applicatons



Slewing drive bearings are usually found in application such as: wind turbines, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.
