Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE5" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | 50Mn, 42CrMo | Slewing Reducer: | VE5" |
|---|---|---|---|
| Gear Ratio: | 37:1 | Efficiency: | 40% |
| Color: | As Requested | Application: | Solar Tracker |
| Place Of Origin: | China | Driver: | 12V/24VDC Motor |
| Warranty: | 10 Years | Certificate: | ISO9001, CE |
| Installation Site: | Open Field | Lifetime: | 30 Years Field Life |
| High Light: | VE5 Small Slew Drive,24VDC Motor Small Slew Drive,Open Field slew drive gearbox |
||

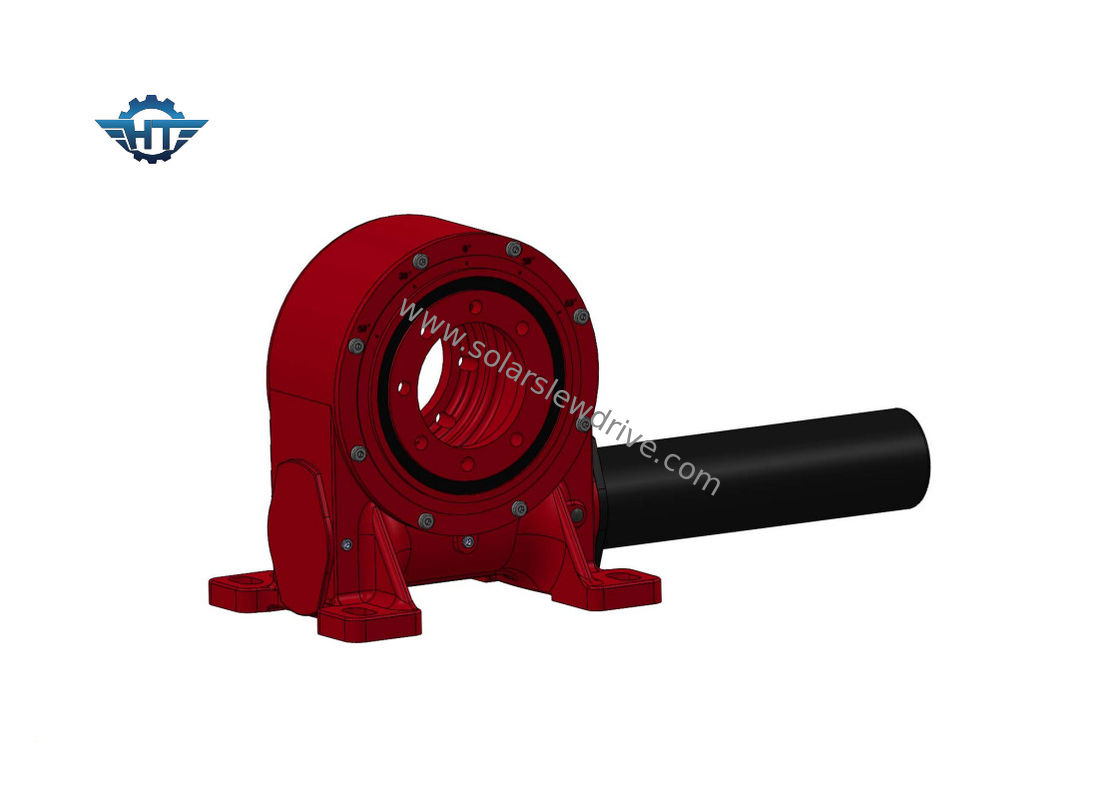

VE5 40 To 1 Gearbox For Solar Panel Horizontal Single Axis Trackers
Enveloping Worm Gear Description
The slewing drive is a new type of rotary and transmission product. It is usually called slewing drive or slewing bearing, which is usually composed of double enveloping worm, gear, housing, motor and other components. Since the core components are the double enveloping worm, it can mesh with the gear more closely and to achieve multi tooth contact, thus improve the accuracy and the holding moment torque. They can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation space.
Performance Parameters of VE Series
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13 |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28 |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35 |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51 |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61 |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 |
Applications
There are 10 different sizes of VE type slewing drives, starting from 3' size to 25" inch, among them are 5", 7", 9" 12", 14", 17" , 19" and 21". They are both widely used in solar tracking systems (PV, CPV, HCPV and heliostat) and regular vehicles, such as man lifts, truck cranes, as well as modular vehicles.
