Solar Tracking Linkage IP66 Solar Slew Gear Drive With 24vdc Reducer

Solar Tracking Linkage IP66 Solar Slew Gear Drive With 24vdc Reducer

  • Solar Tracking Linkage IP66 Solar Slew Gear Drive With 24vdc Reducer
  • Solar Tracking Linkage IP66 Solar Slew Gear Drive With 24vdc Reducer
Solar Tracking Linkage IP66 Solar Slew Gear Drive With 24vdc Reducer
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE8
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 200~380 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Slewing Range: ±60° Material: 42CRMN Or 50Mn
Application: Linkage Tracker Warranty: 10 Years
Color: Orange Size: 3 Inch - 25 Inch
Motor: 24VDC/220VAC Worm Gear: Double Enveloping
High Light:

solar tracking linkage slew gear drive

,

iP66 Solar slew gear drive

,

42CRMN slew gearbox

IP66 Solar Slew Gear Drive With 24vdc Gearbox Reducer For Linkage Solar Tracking System



Solar Slew Gear Drive Description



Solar Slewing Drive have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. Slewing drive is based on the double enveloping worm gear structure, which featured multi tooth contact designed specially for driving high load. It have strong tilting moment torque and static self-locking function.



The planetary gear reduction gearbox's working principle makes itself to bear a big radial load due to the proportionate distribution of torque. What's more, our slewing drives can attach to different kinds of motors, hydraulic motor, 24vdc/12vdc electric motor, servo motor, stepper motor and we have all series slew gearbox size meet customers' different demand.



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Slewing Drive have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.

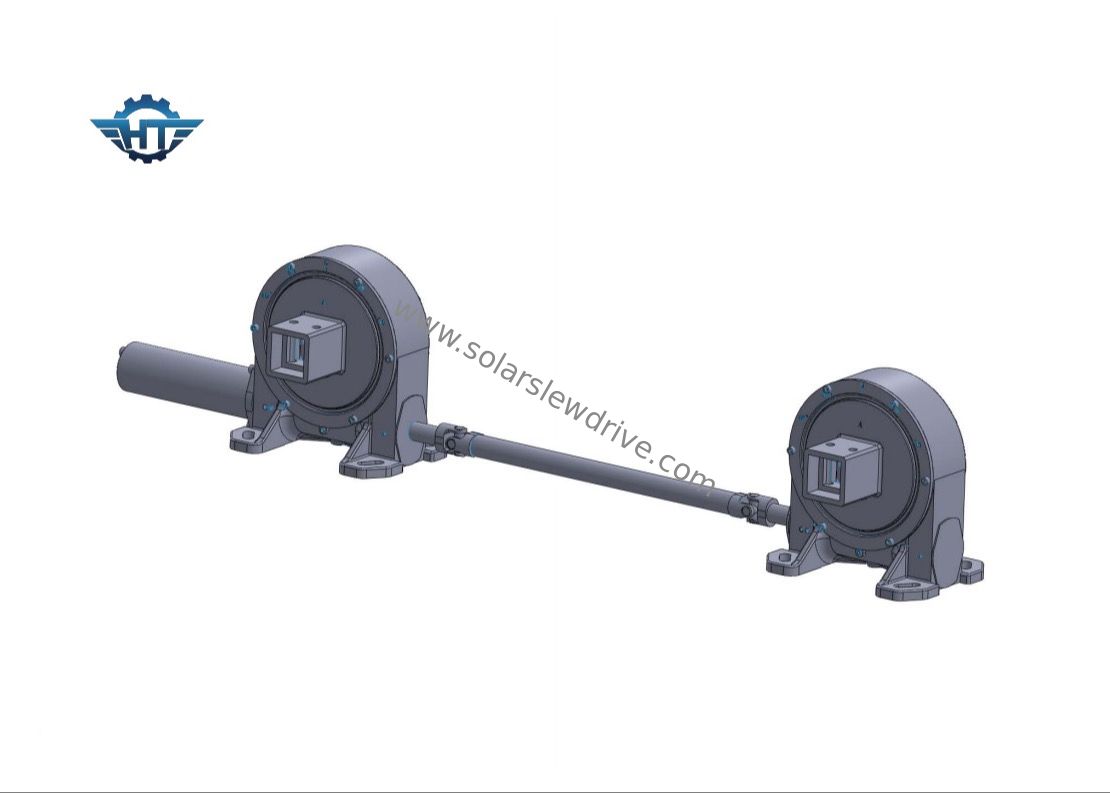

Solar Tracking Linkage IP66 Solar Slew Gear Drive With 24vdc Reducer 0



Features



1. Rotate ±60°, hard stop inside to ensure system safety

2. Connect a driving motor from the left, right side or in the middle

3. The clearance is already set by the producer before factory, so no need to adjust it when installation

4. Grease had been filled before factory, just need refill each 5 years

4. Simple installation and low maintenance

5. Compact design and space saving

6. The gear is self-locking, so no need of addtional brake

7. Easy and fluent method of starting and stopping

8. High tilting torque and backholding torque to improve safety under harsh environment
