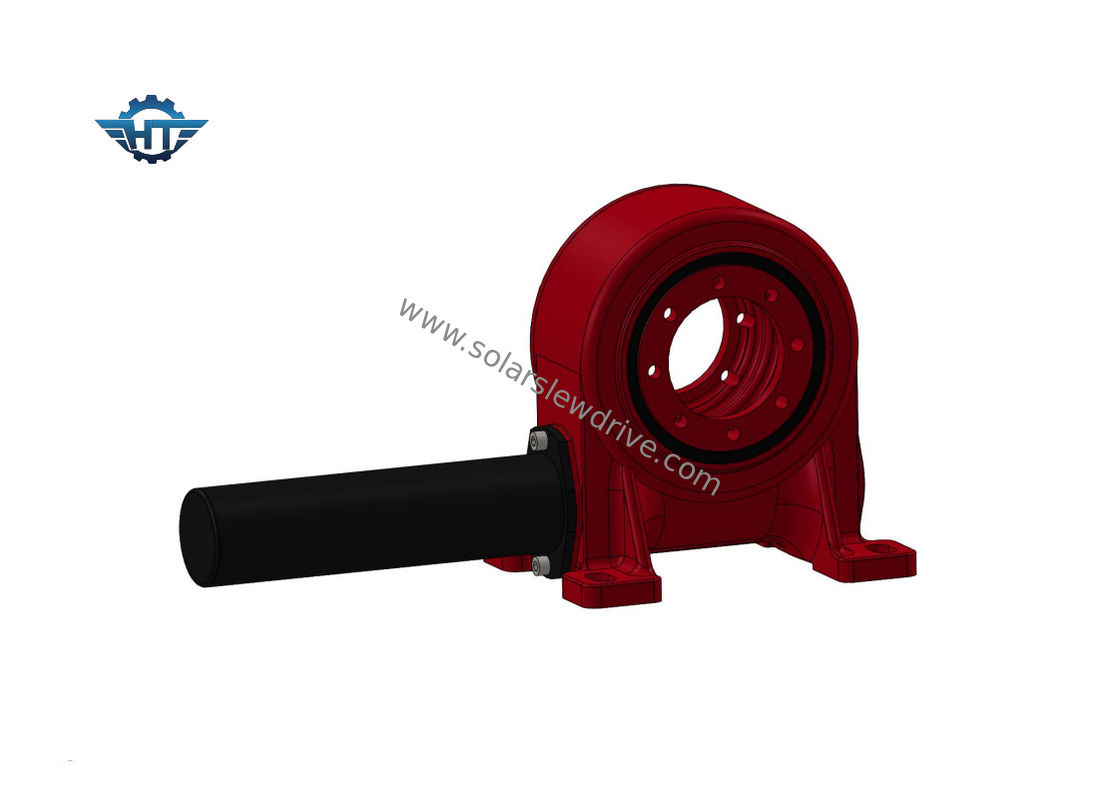

Worm Gear Enveloping Slew Drive Reduction For Solar Tracking System With 24V DC Motor
Worm Wheel Gear Drive Description
Our manufacturing standard is according to industral machinery standard and we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015.
We devote ourselves to the R&D of customized slewing drive with high precision,special purpose and customised requirements. With high quality raw materials and high production efficiency, we can supply products to customers as quickly as possible and shorten the time for customers to wait for products.
Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. And we have complete testing equipment and advanced testing method.
We also have strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
Features
1. The worm gear set can rotate ±60 degrees or 360 degrees
2. You can connect a driving motor to the left or right side
3. During installation, no need to adjust the gearing clearance
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking, therefore a brake is not necessary
7. High accuracy slewing drives are optional
9. IP66 protection grade
Our Services & Strength
1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System .
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.
6. OEM service
6.1 We provide standard products and non-standard products;
6.2 We provide customized samples, customized drawings, door-to-door mapping and other services;
6.3 We provide a full range of services, including design, processing, packaging, transportation, etc.
Packaging & Shipping
1. Filling with rust-proof oil
2. Packing with protective layers
3. Fixed in the plywood case, pallet, steel frame
Technical Date of Vertical Series
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
