Outdoor Worm Gear Slewing Ring Drive With Ratio 31 To 150 Solar Tracking System

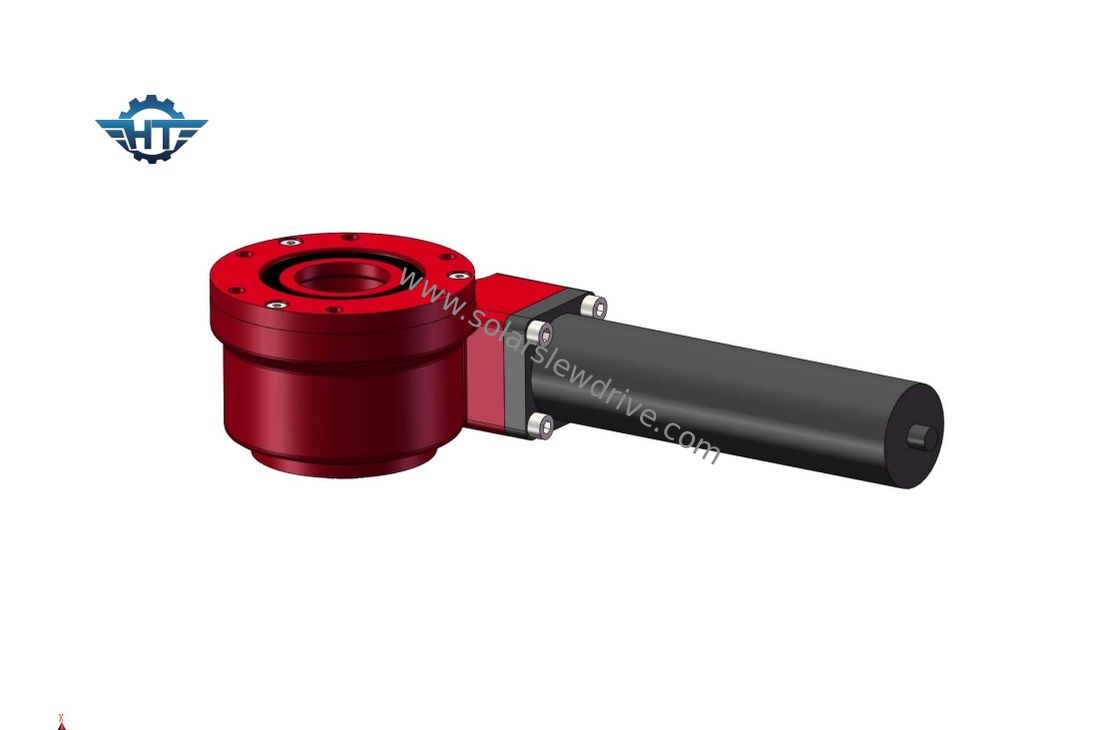

Outdoor Worm Gear Slewing Ring Drive With Ratio 31 To 150 Solar Tracking System

  • Outdoor Worm Gear Slewing Ring Drive With Ratio 31 To 150 Solar Tracking System
  • Outdoor Worm Gear Slewing Ring Drive With Ratio 31 To 150 Solar Tracking System
Outdoor Worm Gear Slewing Ring Drive With Ratio 31 To 150 Solar Tracking System
Product Details:
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE12"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Place Of Origin: Changzhou, China Model: SE12
Gear Ratio: 78:1 Application: Construction Machinery & New Energy
Driver: 220/380/24/12V Motor Warranty: 30 Year Field Life
Certificate: ISO9001, CE Installation: As Requested
High Light:

Outdoor slewing ring drive

,

Solar Tracking slewing ring drive

,

SE12 Solar slew drive

Worm And Gear Set Slewing Drive With Ratio 31 To 150 For Outdoor Use Solar Tracking System



Worm And Gear Slewing Drive Description



We have first-class testing equipment to detect the parameters of the worm and gear set and control the quality of the slewing drives. All the spareparts must be detected to check if the quality is qualified and the unqualified parts will be eliminated directly.



We have our own experienced R&D team to give customer better customised solutions and help customers to solve the problem. We can design customers' own logo to show on the nameplate of the worm gear slewing drives.



Prices are quite different between different manufacturers based on the manufacturers requirements, scale , supply chain management etc. Our price is not the lowest but is among the competitive.



Outdoor Worm Gear Slewing Ring Drive With Ratio 31 To 150 Solar Tracking System 0



Performance Data of SE Slewing Drives



Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182



Features



1. Those products are designed for 30 year field life and working in hard environment conditions.

2. We have various sizes and types, including customized.

3. Easy to installation and product warranty 10 years.



Applicatons



The SE series slewing drives are usually applied in wind turbines, solar energy power stations, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.
