SE1 IP66 Zero Backlash Small Slew Drive For Linkage Horizontal Single Tracker

SE1 IP66 Zero Backlash Small Slew Drive For Linkage Horizontal Single Tracker

SE1  IP66 Zero Backlash Small Slew Drive For Linkage Horizontal Single Tracker
SE1  IP66 Zero Backlash Small Slew Drive For Linkage Horizontal Single Tracker
SE1  IP66 Zero Backlash Small Slew Drive For Linkage Horizontal Single Tracker
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Gear Motor: 12/24/48 V Hall Sensors: Optional
Speed: 0.03~1 RPM Gear Ratio: 32:1
Color: Silver Surface: Plastic Powder
Back Holding Torque: 1850 NM Tilting Torque: 320 NM
High Light:

zero backlash Small Slew Drive

,

SE1 Small Slew Drive

,

horizontal linkage solar Slew Drive

SE1 Worm Gear Slewing Drive, IP66 Zero Backlash Gear For Linkage Horizontal Single Tracker​



Worm Gear Slewing Drive Introduction



A slewing drive can support a heavy but slow-turning load, often a horizontal platform such as a conventional crane, a swing yarder, or the wind-facing platform of a horizontal-axis windmill. Now, it is widely used in solar energy: single axis solar tracking system, dual axis solar tracking system, concentrated solar power, fresnel, heat tower and even in antenna.



The helical gear and hourglass worm make it achieve multi tooth contact, which made it can bear the axial force, radial force and the tilting moment at the same time.

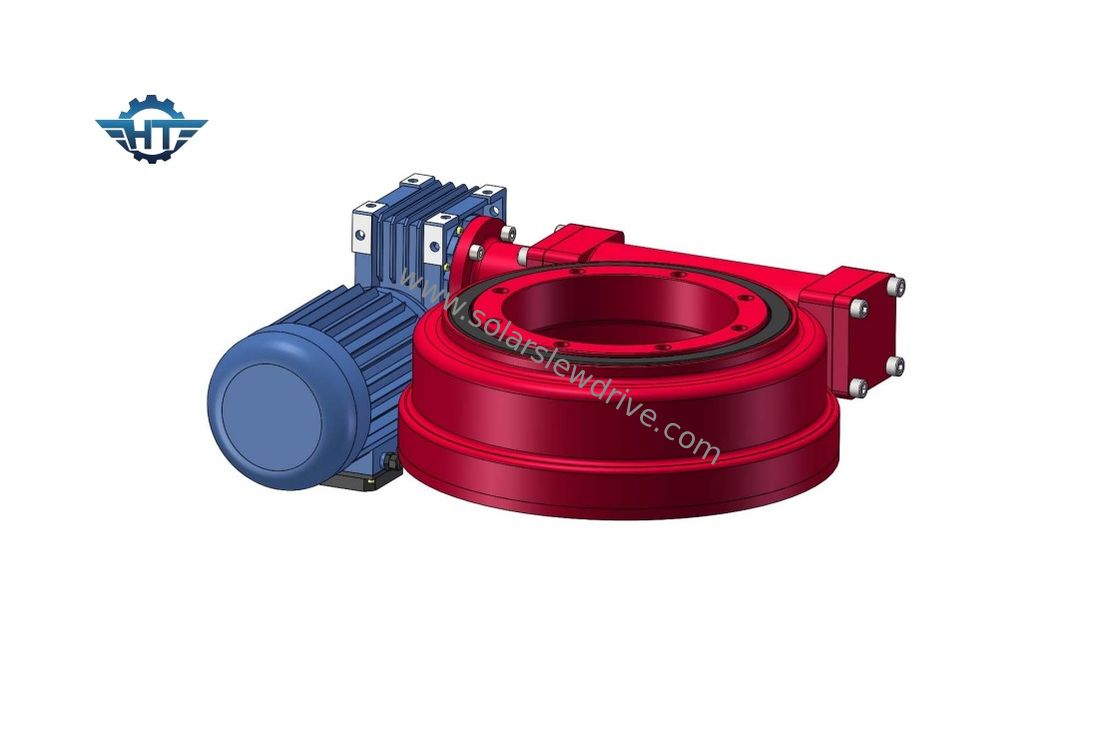

SE1  IP66 Zero Backlash Small Slew Drive For Linkage Horizontal Single Tracker 0



Technical Sheet of SE Slewing Drives



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Specifications



SE1  IP66 Zero Backlash Small Slew Drive For Linkage Horizontal Single Tracker 1



Gear Motor



Voltage output power output speed water proofing
24VDC 5-60W 10-100rpm IP65
Remark Special motors can be customized per your requirements.
Encoder and gear box can be fixed.
Planetary gearbox could be matched based on diffenent demands





Advantages



1. Provide ODM/OEM service

2. 100% quality service

3. CE certified



Contact Details
Changzhou Hangtuo Mechanical Co., Ltd

Contact Person: Jessie

Tel: +86 18800586965

Send your inquiry directly to us
