Model: SE3 Type: Worm And Gear
Colour: As Requested Gear Ratio: 31:1
OEM: Available Material: QT And 42CRMO
Certificate: ISO9001,CE Painting: Available
High Light:

SE3 slew drive gearbox


iP66 protection slew drive gearbox


Worm Gear Envelope slew drive


SE3 Worm Gear Envelope Solar Slew Drive With IP66 Protection For Outdoor Solar Tracking System


Worm Gear Slewing Drive Description


As technology has improved, more slewing drives are using hourglass worm technology, in which the worm is shaped to engage more teeth in the gear, thus the torque imporved and the backlash decreased.

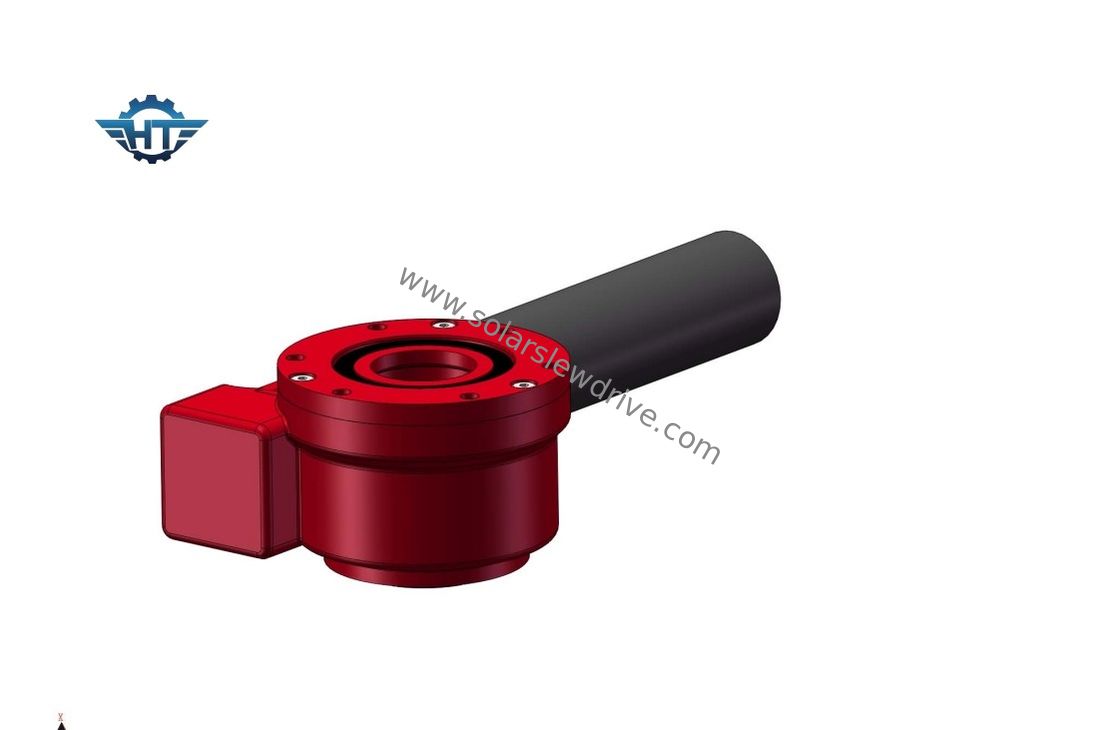

SE3 Worm Gear Envelope Slew Drive Gearbox IP66 Protection 0

This increased tooth engagement results in greater strength, efficiency and durability.The slewing drive uses standard worm technology in which the worm on the horizontal, the speed ratio of the shaft depends on the relationship between the number of threads on the worm and the number of teeth in the worm gear.


Performace of SE Series


Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204


Installation of the Slew Drive


1.Clean the mounting structure, e.g. from welding, galvanizing, residues, dirt, etc.

2.Lift the slew drive with eye bolts.

3.The slew drive shall be mounted in unloaded condition.

4.The following procedure shall be followed in order to avoid deviations between bolt tightening forces.

5.Apply thread lock liquid to threads.

6.Lay thread lock liquid on thread gap requesting fitting parts fully.

7.Preload the bolts crosswise. See the general pattern in sketch below of how bolts get torque in crosswise sequence. Start with either inner or outer ring. Do the crosswise torqueing of all bolts to 30% of tightening torque. Then repeat crosswise torque to 80% of tightening torque. Finally crosswise torque to 100% of the tightening torque.


There are many applications where a rotary drive can be used, primary because it is well suited for applications that require load to maintain power and rotational torque.
Typical swing drive applications include, but are not limited to:
1.Solar tracker
2.Wind Turbines
3.Men's lift
4.Hydraulic machinery
9.Drilling equipment
10.Military equipment
