Providing Innovative and Cost-effective Slewing Drives
 |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE9 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Place Of Origin: | Changzhou, China | Model: | 9" |
|---|---|---|---|
| Gear Ratio: | 61:1 | Efficiency: | 40% |
| Type: | Wear Gear | Application: | Solar Energy |
| OEM Service: | Available | Driver: | 24VDC Motors |
| High Light: | 9" Solar Slew Drive,24V Stepper Motor Slew Drive,zero backlash solar slew gear |
||

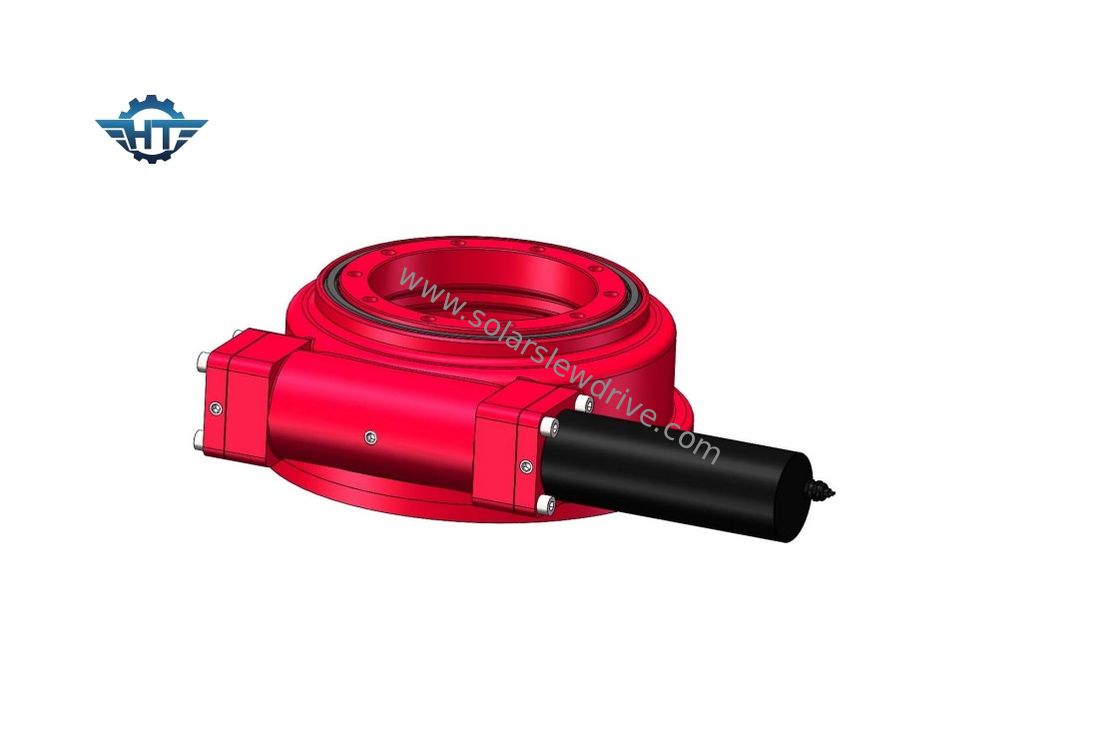

Worm Gear Slewing Dive Description
What is a worm gear Slewing Drive?
A worm gear slewing drive (or worm gear slew drive for short) is a complete, ready to install system that consists of double envelop worm, gear and completely enclosed housing. It can be customized with hydraulic or electric planetary gearboxes with IP 66 grade which is able to be used in outdoor applications. It has the features of corrosion protection, high load, and high precision.
Worm gear slewing is widely applied in the relatively rotary parts of machinery and solar energy field such as solar tracking system, rotary chassis of aerial working machinery, truck crane, rock drill, drilling machine, grasping wood machine, code molding machine.
Key Features
1. An unlimited rotating angle and range
2. Provide the most efficient transmission of high power and torque possible
3. Completely enclosed and sealed housing withstands harsh environments and increases safety
Parameters of SE Series
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
