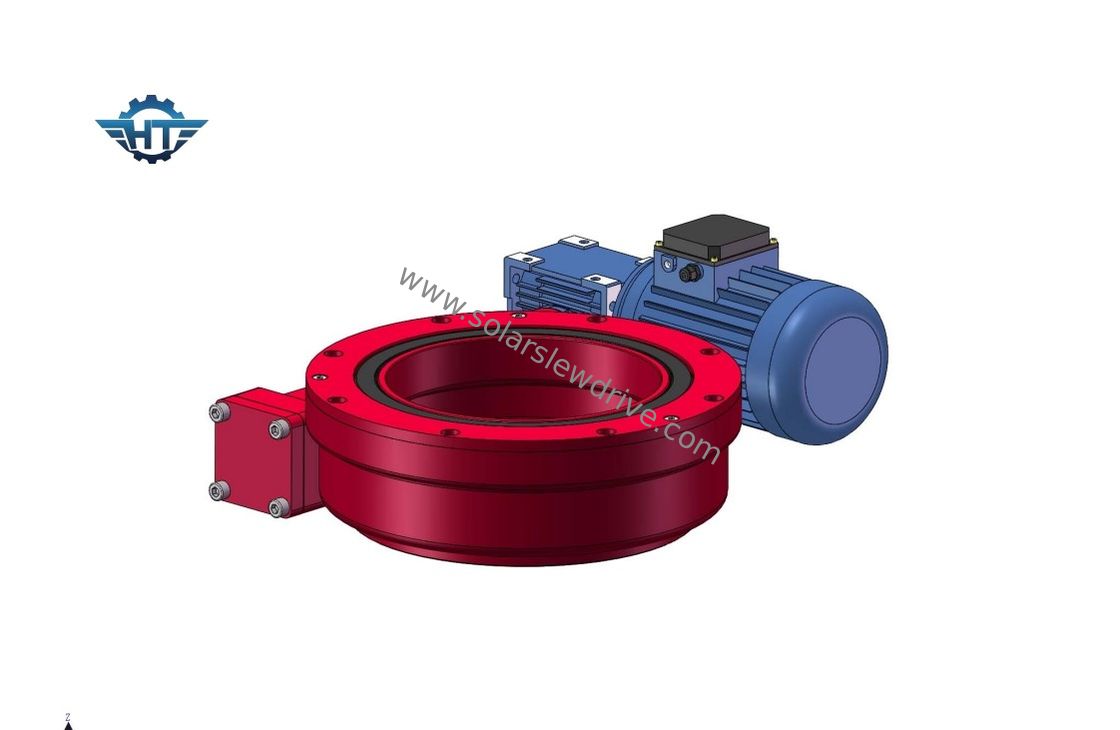

SE5 Single Worm Shaft Small Slew Drive With Hydraulic Motor For Industrial Excavator

SE5 Single Worm Shaft Small Slew Drive With Hydraulic Motor For Industrial Excavator

  • SE5 Single Worm Shaft Small Slew Drive With Hydraulic Motor For Industrial Excavator
  • SE5 Single Worm Shaft Small Slew Drive With Hydraulic Motor For Industrial Excavator
SE5 Single Worm Shaft Small Slew Drive With Hydraulic Motor For Industrial Excavator
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: SE5 Gear Ratio: 51:1
Application: Worm Gear Transmission Place Of Origin: Changzhou, China
Certificate: ISO9001 / CE Feature: Single Axis
Grease: Internal 5 Years Color: As Requested
Backlash: 0.1 Degree
High Light:

Single shaft small Slew Drive

,

excavator small Slew Drive

,

SE5 hydraulic slew drive

SE5 Single Worm Shaft And Worm Gear Slewing Drive With Hydraulic Motor For Industrial Excavator







Excavator Slew Bearing Description



There are all kinds of slewing bearings and slewing drive, standard or non-standard for construction machinery or industrial using such as tower cranes, excavator, mobile crane, crawler crane, stacker reclaimers.



Our compact designed worm gear slewing drives are also specially used for solar tracking systems. We are capable to design and manufacture non-standard slewing bearing and slewing drives independently. Our products are widely used in various application fields, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery and the military etc.



SE5 Single Worm Shaft Small Slew Drive With Hydraulic Motor For Industrial Excavator 0

FOR ANTENNA



With over 10 years of experience, our products are widely export to USA, Germany, Japan, Spain, Canada, Italy, France, India, Brazil, Australia etc.


Our Advantages



1. Hourglass worm wheel provides more tooth contact, to ensure higher torque

2. Self-locking feature to enhance the stability and safety factor
3. Easy to install, easy to maintain, and saves considerable installation space.
4. Slewing gear and raceway harden processing technology increase the slew drive lifetime
6. Custom design is available



Technical Sheet of SE Slewing Drives



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Package and Delivery



1. Delivery time: 7- 60 days.
2. Payment: T/T, L/C etc.
3. Packaging: plywood box.
