Solar Tracker Slew Drive
Created with Pixso. VE IP66 Protection And Strength Holding Torque Solar Slew Drive For Solar Panel Energy

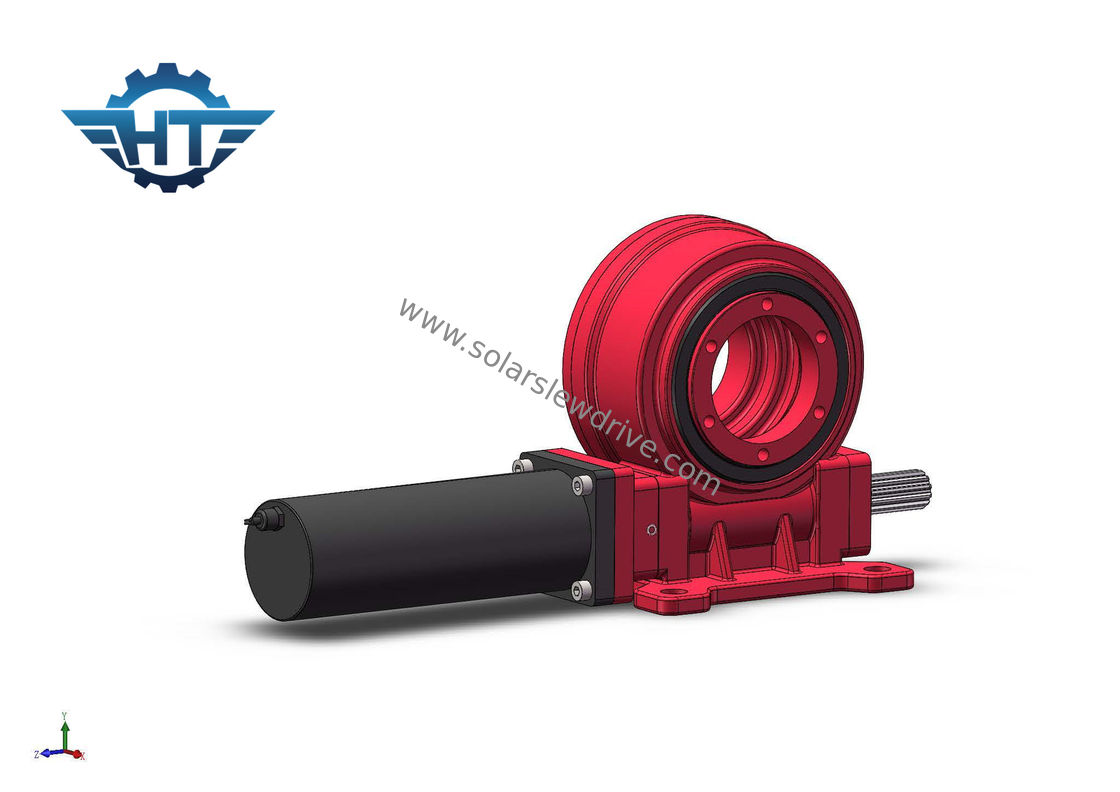

VE IP66 Protection And Strength Holding Torque Solar Slew Drive For Solar Panel Energy

Brand Name: HangTuo
Model Number: VE6
MOQ: 1 piece
Price: USD 280~330/ pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Speed:
0.016rpm
Application:
Solar Energy
Driver:
Electric Motor
IP Grade:
IP66
Max Torque:
7140Nm
Holding Torque:
40kNm
Model:
VE6
Ratio:
51:1
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

ip66 solar slew drive

,

ip66 dual axis slew drive

,

ce solar slew drive

Product Description

VE Solar Tracker Slew Drive With IP66 Protection And Strength Holding Torque For Solar Panel Energy





Description



The "elevation angle + azimuth angle" full tracking system moves along two rotation axis and has two rotation directions, which can completely track the sun's track to maximize solar energy reception.



Applications



Suitable for high latitude areas, the power generation efficiency can be effectively increased by more than 35%, significantly improving the power generation efficiency of the photovoltaic system



CPV application



Concentrated solar energy is a solar power technology that uses optical elements such as lenses or reflective mirrors to condense a large area of ​​sunlight onto a very small area, and then further utilize the solar power generation technology to generate electricity. Concentrated solar technology can be divided into three categories, namely three manifestations:



CPV Concentrated Photovoltaics: The concentrated sunlight is directly converted into electrical energy through photovoltaic cells with high conversion efficiency (Concentrated Photovoltaics); CPV is the most typical representative of concentrated solar power technology.

CST Concentrated Solar Thermal: Use the high heat generated by the concentrated sunlight to heat the liquid working fluid, and then conduct thermal power generation (Concentrated Solar Thermal);

CPVT: The combination of the above two forms (Concentrated Photovoltaics and Thermal) CPV concentrating photovoltaic systems can be divided into two categories according to the different ways of concentrating sunlight, that is, the reflective type using mirror condensing light and the transmissive type using lens concentrating light.

VE IP66 Protection And Strength Holding Torque Solar Slew Drive For Solar Panel Energy 0



Parameters of Other VE Series



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251
