Envelope 24vdc Motor Horizontal Slewing Drive For Solar Tracking System

Envelope 24vdc Motor Horizontal Slewing Drive For Solar Tracking System

  • Envelope 24vdc Motor Horizontal Slewing Drive For Solar Tracking System
  • Envelope 24vdc Motor Horizontal Slewing Drive For Solar Tracking System
Envelope 24vdc Motor Horizontal Slewing Drive For Solar Tracking System
Product Details:
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Place Of Origin: Changzhou, China Material: 50Mn, 42CrMo
Model: VE7 Gear Ratio: 51:1
Efficiency: 40% Color: As Requested
Application: Solar Tracker Driver: 12/24VDC Motor
Warranty: 5~10 Years Certificate: ISO9001, CE
Installation Site: Open Field Feature: Long Life
High Light:

horizontal slewing drive for solar tracking system

,

24v slewing drive for solar tracking system

,

envelope solar slew drive

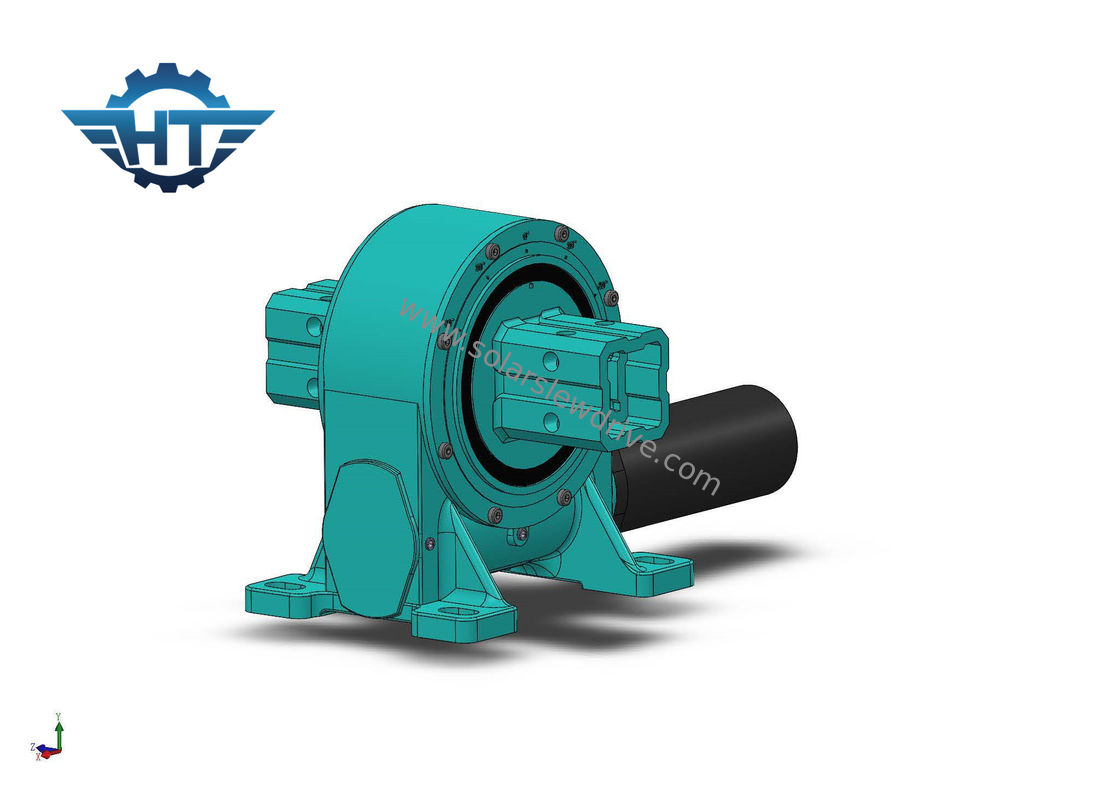

VE7 Envelope Worm Gear Slew Drive, 24VDC Motor Drived For Horizontal Single Axis Solar Tracking System



Description



The slewing drive applied solar tracking system keep the best angle of sunlight at all times. Compared with fixed power stations, flat single-axis tracking can increase annual power generation by 10~30% (depending on latitude changes); inclined single-axis can increase by more than 30%; dual-axis tracking can increase by about 40~50%.



Performance Parameters of VE Series



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244



Envelope 24vdc Motor Horizontal Slewing Drive For Solar Tracking System 0



Application



Used for the rotation of the pitch position of photovoltaic power generation systems such as flat single axis, trough power generation, concentrated power generation, etc.



The flat single-axis tracking system is a form of tracking bracket arranged in north-south and east-west tracking. According to the astronomical algorithm, the motor drives the bracket to make the solar panels track the azimuth of the sun, increase the direct sunlight on the surface of the photovoltaic module, and increase the power generation.





Features



1 Using blind hole design and skeleton oil seal sealing structure, the sealing performance is reliable, the seal can avoid direct sunlight, effectively prevent dust and water, and the protection level can reach IP65. It is suitable for outdoor use and can be output with single or double flanges.

Double enveloping hourglass worm, multi-tooth contact, transmits larger torque, can bear larger axial force, radial force and tilting moment

3 The product design adopts the common size at home and abroad, which is convenient for later replacement

4 Double raceway support structure, strong rigidity, can withstand large load radial force and overturning moment, especially suitable for independently driven dual-axis photovoltaic, concentrating bracket pitching azimuth and other working conditions

5 Double-sided coaxial output flange, symmetrical structure, high assembly fault tolerance, small axial size, space saving, hollow output shaft structure, convenient for wiring and structural layout

6 Imported double-lip skeleton seal ring to prevent on-site pollution
