| Material: | 50Mn, 42CrMo | Model: | VE7" |
|---|---|---|---|
| Gear Ratio: | 57:1 | Rated Output Torque: | 7320 Nm |
| Holding Torque: | 3.9 KNm | Tilting Torque: | 8 KNm |
| Efficiency: | 40% | Standard Color: | As Requested |
| Highlight: | single axis solar trackers slew gearbox,horizontal solar trackers slew gearbox,motor driven slew gearbox |
||

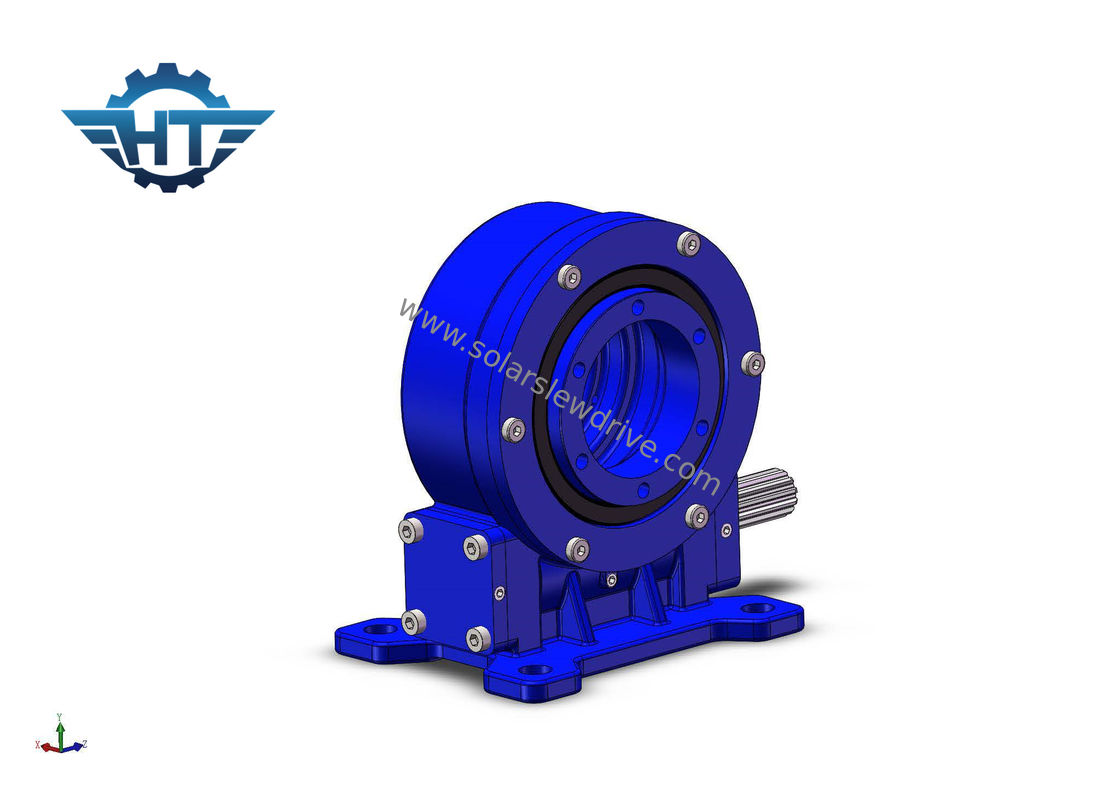

VE7 Slew Drive Gearbox, Envelop Worm With High Torque For Horizontal Single Axis Solar Trackers
Description
There are many names for slewing drive, and there is no unified name at present, if they are called: slewing gear device, slewing drive, slewing reducer, slewing drive unit, etc. The device is composed of worm, gear, housing, motor and other components. The slewing drive can be basically divided into a single worm drive, and a double worm drive slewing drive. It is based on a slewing bearing, has a strong overturning moment, and uses a highly wear-resistant worm gear transmission. The smooth transmission makes the user's device more reliable. It adopts a worm drive, multi-tooth contact can drive a larger load, and also has a static self-locking function. The device can also be widely used in construction machinery and new energy fields such as heavy-duty flatbed trucks, container cranes, truck-mounted cranes, high-altitude operating vehicles, solar power generation systems, etc.
Features
1. Rotation ±60 degree or 360 degree.
2. Motor connnet on the left or right side,
3. No need to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance, every 5 years.
5. Rational space utilization
6. Self-locking gear, therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High accuracy
9. IP66 protection grade
Our Strength
1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System;
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.
Services
1. OEM service
2. We provide standard products and non-standard products;
3. We provide customized samples, customized drawings, door-to-door mapping and other services;
4. We provide a full range of services, including design, processing, packaging, transportation, etc.
Packaging & Shipping
1. Filling with rust-proof oil
2. Packing with protective layers
3. Fixed in the plywood case, pallet, steel frame
Technical Date of Vertical Series
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
