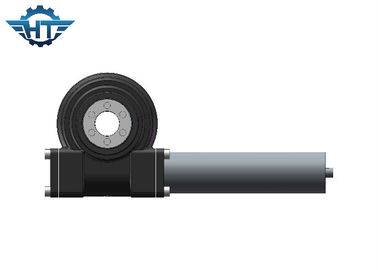

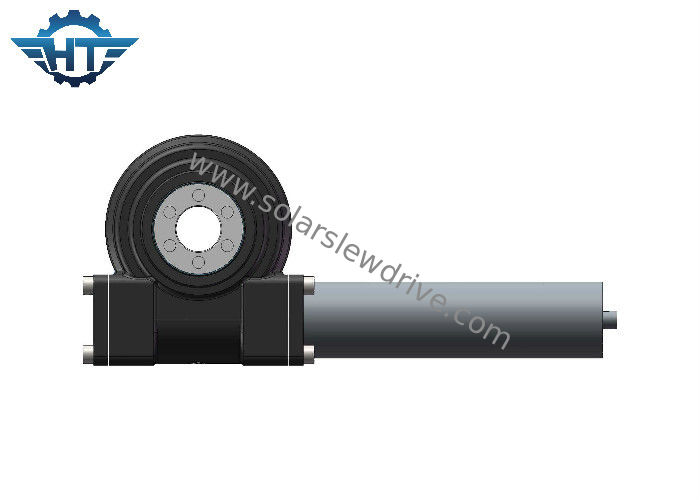

Iso Envelope 24v Dc Planetary Motor Worm Gear Slew Drive

Iso Envelope 24v Dc Planetary Motor Worm Gear Slew Drive

  • Iso Envelope 24v Dc Planetary Motor Worm Gear Slew Drive
  • Iso Envelope 24v Dc Planetary Motor Worm Gear Slew Drive
Iso Envelope 24v Dc Planetary Motor Worm Gear Slew Drive
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE6
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 270 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Type: Slewing Drive Material: 42CRMN Or 50Mn
Application: Solar Power System Warranty: 10 Years
Color: Customer Required Size: 6 Inch
Motor: 24V Feature: Long Life
High Light:

planetary motor worm gear slew drive

,

24v dc worm gear slew drive

,

envelope worm gear slew drive

Envelope Worm Slew Drive With 24V DC Planetary Gear Motor For Solar Tracking System



Description



In recent years, more and more attention has been paid to the development of low-carbon, environmental protection, and renewable energy. As a clean and pollution-free energy source, solar energy has a very broad development prospect, and it has become a green energy that all countries are competing to develop. However, solar energy has problems such as low density, intermittentness, and continuous changes in light direction and intensity over time. Traditional solar panels are mostly installed in a fixed manner, that is, the panels are fixed at a certain angle and do not change with the position of the sun, which seriously affects the photoelectric conversion efficiency. The output power of the photovoltaic array will be reduced by about 10% due to the reduction of the radiant energy incident vertically. Throughout the year, spring, summer, autumn and winter, from day to night, the rising and setting of the sun and the angle of the sun's rays change all the time. Therefore, how to change the angle of the battery panel with the angle of light to increase the photovoltaic conversion rate. This requires the use of a rotary drive device, which can change the position and angle of the battery panel to achieve the intensity of the sun's rays perpendicular to the light intensity of the battery panel, thereby increasing the photovoltaic conversion rate. So the tracking system plays an important role and application of the slewing bearing in the solar slewing drive device.



The slewing drive device is a new type of slewing product, usually composed of slewing bearings, worms, motors, shells and other parts. It not only has the functions of connecting, rotating and supporting slewing bearings, but also has the compact structure and output torque of worm drive. The advantages of large, stable transmission, long service life, easy installation, a large amount of installation space saving, easy maintenance, can greatly save costs.


The slewing drive device saves the user installation time because of the modular operation, and the centralized function also facilitates the designer's product design. At present, it is widely used in industrial robots, solar power generation and other fields.

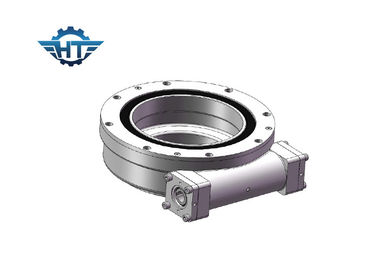

Iso Envelope 24v Dc Planetary Motor Worm Gear Slew Drive 0



Features



1. Rotate from 0~180°

2. Connect a driving motor on the left or right side

3. Grease filled before factory

4. Simple installation

5. Low maintenance

6. The gear is self-locking; therefore a brake is not necessary

7. High backholding torque, suitable for vertical installation



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Customized Services



1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
