Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE7 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 200~300/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | VE7 |
|---|---|---|---|
| Gear Ratio: | 51:1 | Rated Output Torque: | 6120 Nm |
| Holding Torque: | 39000 Nm | Tilting Torque: | 10 KNm |
| Efficiency: | 40% | Standard Color: | As Requested |
| High Light: | hourglass worm gear slew drive,120mm tube worm gear slew drive,single tracking worm gear slew drive |
||

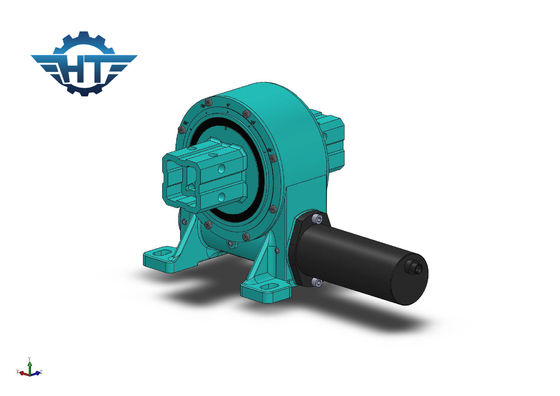

VE9 Single Axis Worm Gear Slew Drive With 120mm Square Tube For Flat Single Tracking System
Description

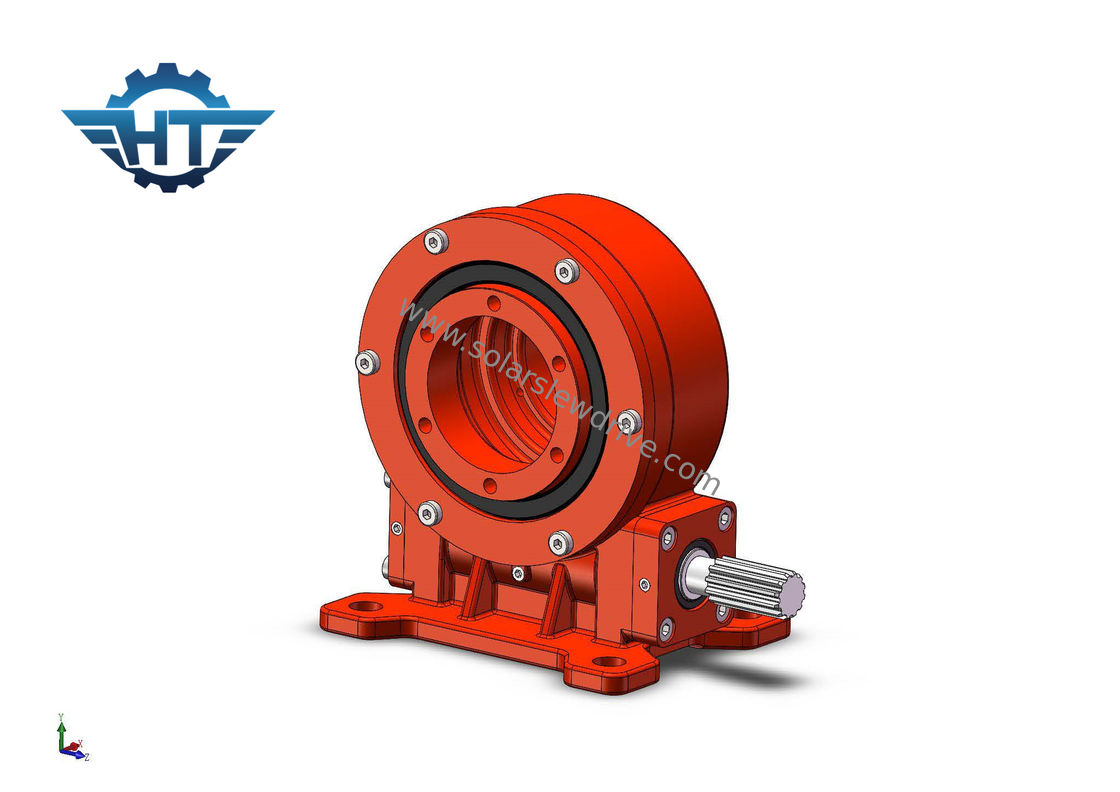

VE7 single-axis slewing drives rotate around one axis. The VE7 slewing drive with 24vdc gear motor can be designed for different size to fit for all kinds of main tubes. It is also a standard product, the easiest to install, and the most commonly used. The VE7 slewing drive offers vertical mounting and a fully-enclosed drive in one high-powered unit.
Advantages
1. High backholding torque
2. Self-locking to improve the solar tracking system's safety
2. Hard stop inside, range from ＋60°~－60°, if customers have an application required 360° rotaion, we have flange output type to supply
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load and minimize backlash
Technical Data of VE Slewing Drives
|
Model |
Ratio |
Rated Output Torque(N.m) |
Tilting Torque(N.m) |
Holding Torque(N.m) |
Axial Load(kN) |
Radial Load(kN) |
Efficiency |
Precision(°) |
Self-locking |
Weight(kg) |
|
3" |
31:1 |
600 |
1500 |
1800 |
22 |
15 |
40% |
≤0.1 |
Yes |
12 |
|
5" |
37:1 |
800 |
5000 |
9200 |
16 |
27 |
40% |
≤0.1 |
Yes |
18 |
|
7" |
57:1 |
1750 |
7000 |
13200 |
34 |
58 |
40% |
≤0.1 |
Yes |
32 |
|
8" |
51:1 |
2250 |
11200 |
20400 |
50 |
80 |
40% |
≤0.1 |
Yes |
28 |
|
9" |
61:1 |
2250 |
16000 |
30800 |
60 |
130 |
40% |
≤0.1 |
Yes |
52 |
|
12" |
78:1 |
4300 |
25000 |
40560 |
77 |
190 |
40% |
≤0.1 |
Yes |
65 |
|
14" |
85:1 |
5600 |
48000 |
44200 |
110 |
230 |
40% |
≤0.1 |
Yes |
88 |
|
17" |
102:1 |
6750 |
67000 |
53040 |
142 |
390 |
40% |
≤0.1 |
Yes |
135 |
|
21" |
125:1 |
16000 |
89000 |
65000 |
337 |
640 |
40% |
≤0.1 |
Yes |
192 |
|
25" |
150:1 |
21450 |
112000 |
89000 |
476 |
950 |
40% |
≤0.1 |
Yes |
251 |
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
Applicatons
Slewing drive bearings are usually found in application such as: wind turbines, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.
Q&A
1. How can i choose?
Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the suitable gear motors
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
10 sets after samples confirmed
6. What's your delivery time?
For standard samples: within 7 days; for batch orders: within 25 days.
