Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE7 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 295/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Brand Name: | Hangtuo | Material: | 50Mn, 42CrMo |
|---|---|---|---|
| Certificate: | ISO9001, CE | Motor: | 24vdc |
| Maintenance: | Free | Color: | As Requested |
| Self-lock: | Yes | Holding Torque: | 39 KNm |
| High Light: | Vertical Slew Drive Gearbox,Vertical slew gearbox,24vdc Slew Drive Gearbox |
||

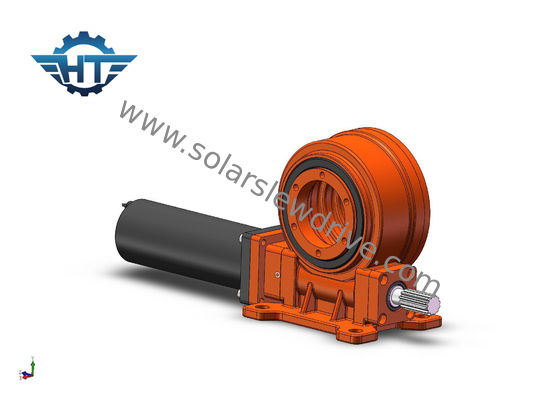

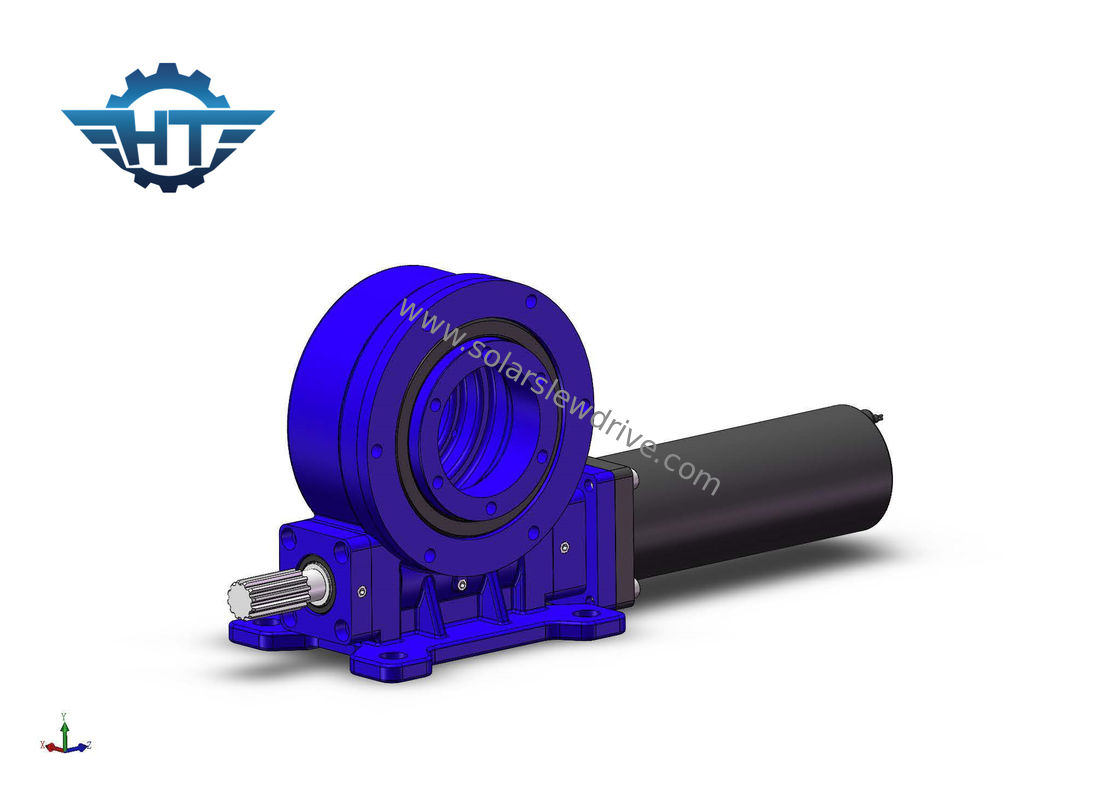

Vertical Slew Drive Gearbox For Automatic Solar Trackers 2*60, 2*54 Two Portrait Arrangement
Description
Vertical mounted slewing drive is specifically designed for automatic solar tracking systems that horizontal axis tracking is required. The precise rotation of the vertical slew drive allows the mechanism to track precisely. This kind of vertical slewing ring drive is manufactured by using the latest technology with hourglass mechanism. The form of tooth contact can support higher holding torque capacity than normal drive. This allows larger amount of solar panels to be installed, reducing installation costs. During the installation of vertical slewing drive, the required torque and lad conditions should be considered.
VE Slewing Drive Data Sheet
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
Selection of Slewing Drive
When selecting a suitable slewing drive, we need a brief information about the solar tracking system:
1. The scale of the projects. For utility-scale and large projects usually use horizontal single-axis solar trackers, while dual-axis trackers are mostly used in smaller residential applications.
2. The load on the slewing drives and its gravity distance
3. The output speed
Applications
solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
Note:
Express: door to door, just need to pay the import tax if required by the custom.
By air or by sea: factory to destination airport/sea port, need pay destination fee charged by the airport(the destination fee is always charged by per B/L regardless of the package is big, small, heavy or light, in gerneral 200~400 USD per cargo) and import tax if required by the custom.
By train: sometimes the shipping price is the same as sea but taking less shipping time than sea, we will take this shipping way into consideration if the goods are in urgent need by our clients.
