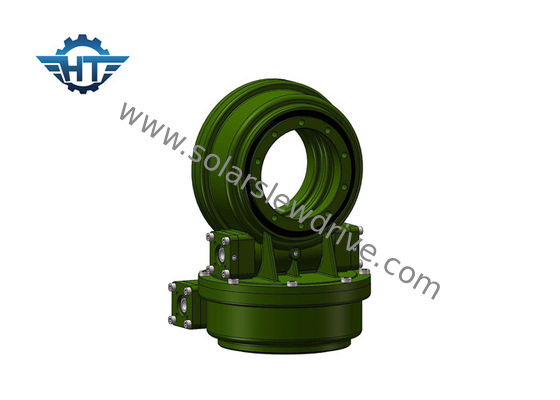

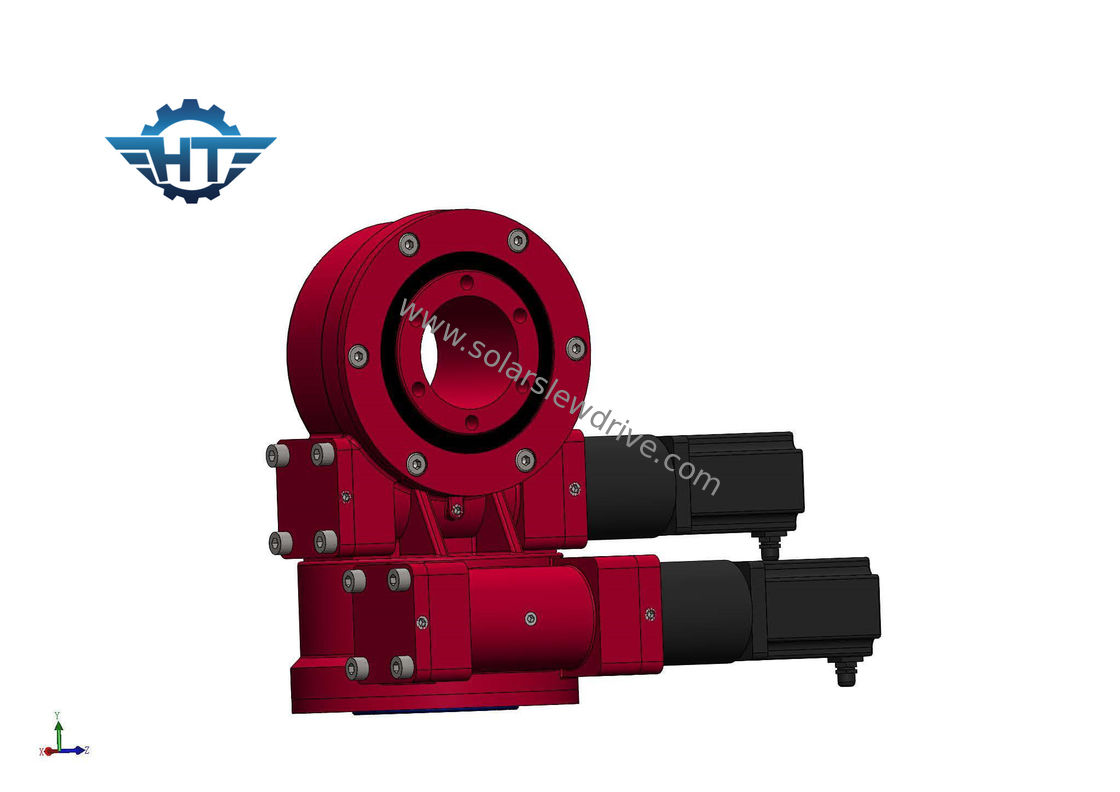

3 Inch Dual Axis Slew Drive Gearbox Precision Transmission For Solar Tracking System

3 Inch Dual Axis Slew Drive Gearbox Precision Transmission For Solar Tracking System

  • 3 Inch Dual Axis Slew Drive Gearbox Precision Transmission For Solar Tracking System
  • 3 Inch Dual Axis Slew Drive Gearbox Precision Transmission For Solar Tracking System
3 Inch Dual Axis Slew Drive Gearbox Precision Transmission For Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE3"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 385/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo, QT Model: SDE3
Gear Ratio: 31:1 Rated Output Torque: 600 Nm
Holding Torque: 1500 Nm Tilting Torque: 5800 Nm
Efficiency: 40% Standard Color: RAL 9006
Backlash: Less Than 0.1 Degree Rotating Type: Horizontally And Vertically
High Light:

3 Inch Slew Drive Gearbox

,

Dual Axis Slew Drive Gearbox

,

Solar Tracking System Slew Gearbox

3 Inch Dual Axis Slew Drive Gearbox Precision Transmission For Solar Tracking System



Features



1. our slewing drive are widely used in the solar tracking systems, special construction vehicles, port machinery and small wind turbines

2. we are fully equipment with all advanced machines for manufacturing, assembly, inspection, test processes and automatic cleaning and painting and power coating lines.



Slewing drive is the combination of the slewing ring with the hourglass worm shft, wich provides more tooth contact , increased drive torque and smoother rotation.

  • Radial and axial loads, and tilting moments simultaneously
  • Space savings in facilities
  • Maximum load capacity in a compact design
  • Extensive lifespan

Technical Data of SDE Slewing Drive



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.



Description



A slewing drive is also called slewing gear drive or slewing reducer, etc. It is typically used in aerospace area, solar power systems, wind turbines, satellite broadcasting system, and engineering machinery like truck cranes, and man lifts, etc. Recently years, it has been prosperously used in photovoltaic power systems.



When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels. In normal, 3 inch slewing drive is suitable for solar power system coming with 3- 5 ㎡ solar panel, 7 inch for 10-17 ㎡ solar panel, 9 inch for 18-30 ㎡, 12 inch for 31-45 ㎡, and 14 inch for 46-60 ㎡. These are provided for your reference. For more specific and detailed information, please contact me directly.



A slewing drive is usually composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc. While used in photovoltaic power generation system, the slewing drive is usually used in combination with DC planetary speed reducer motor and AC speed reducer motor. While used in engineering equipment, it is regularly used in combination with hydraulic motor to function as power driving system.



FAQ



Q: Are you trading company or manufacturer ?

A: We are a factory specializing in the production of screw jack, bevel gearbox, linear actuaor, solar slewing.



Q: How long is your delivery time?

A: Usually we produce within 7-60 days after the payment confirmed. If you are urgent, we will urge the production department for you.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What about the payment methods?

A: We accept T/T, L/C for big amount, and for small amount, you can pay us by PayPal, Western Union, and etc.
