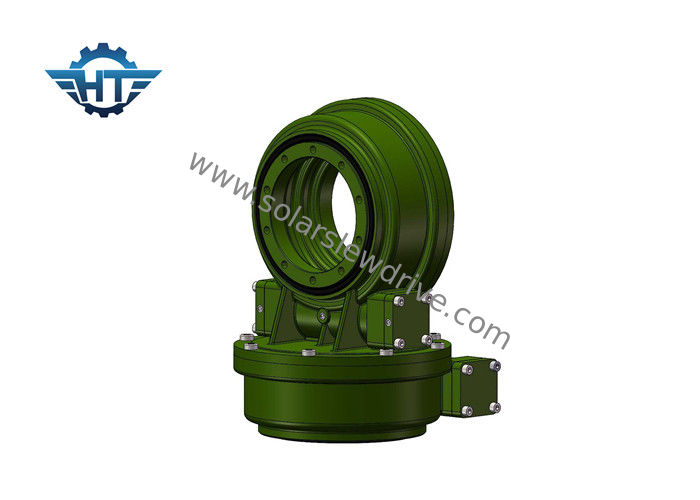

12VDC Stepper Motor Dual Solar Slew Drive For Satellite Trackers / Antenna

12VDC Stepper Motor Dual Solar Slew Drive For Satellite Trackers / Antenna

  • 12VDC Stepper Motor Dual Solar Slew Drive For Satellite Trackers / Antenna
  • 12VDC Stepper Motor Dual Solar Slew Drive For Satellite Trackers / Antenna
12VDC Stepper Motor Dual Solar Slew Drive For Satellite Trackers / Antenna
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 441/unit
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 5 Inch Gear Ratio: 37:1
Efficiency: 40% Type: SE Series
Application: Solar Energy OEM Service: Available
Place Of Origin: Changzhou, China Driver: 24 V Gear Motor
High Light:

Dual Solar Slew Drive


12VDC Solar Slew Drive


Stepper Motor Solar Slew Drive

SDE5 Dual Solar Slew Drive With 12VDC Stepper Motor For Satellite Trackers And Antenna




Brand Model Material Service Size Structure
Hangtuo SDE5" 42CrMo/50Mn



Standard Customized Worm and Wormwheel, self locking


Our Advantages


1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.

2. We devote ourselves to the R&D of customized slewing bearing with high precision,special purpose and requirements.

3. With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.

4. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.

5. Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.


If you have any questions or requirements, please do not hesitate to contact us!


Parameters of SDE Slewing Drive



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705


Our Goal


We will put make perfect products and provide customers with satisfactory application experience as our continuous goal. We are very glad to use our professional skills to provide customers with high-quality products, and hope that through continuous cooperation, enhance mutual understanding and communication, and achieve a win-win situation.


Packaging & Shipping


1.Filling with rust-proof oil

2.packing with protective layers

3.Fixed in the Plywood case, Pallet, Steel frame




1. Are you a trader or a manufacture?

We are an industry and trade integration business, our factory located in Changzhou City.

2. How about the payment terms?

We usually accept T/T or L/C. other terms also could be negotiated.

3. What is your minimum order?

It depends on what you are buying. Normally, our minimum order is 1pc.

4. What is your delivery time?

If there are any parts in stock , our delivery time is only 3-7 days by air express. If our standard model but not in stock, the delivery time is around 25 days,if non-standard model, the delivery time is 45~50 days.

5. What about Quality Control?

We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
