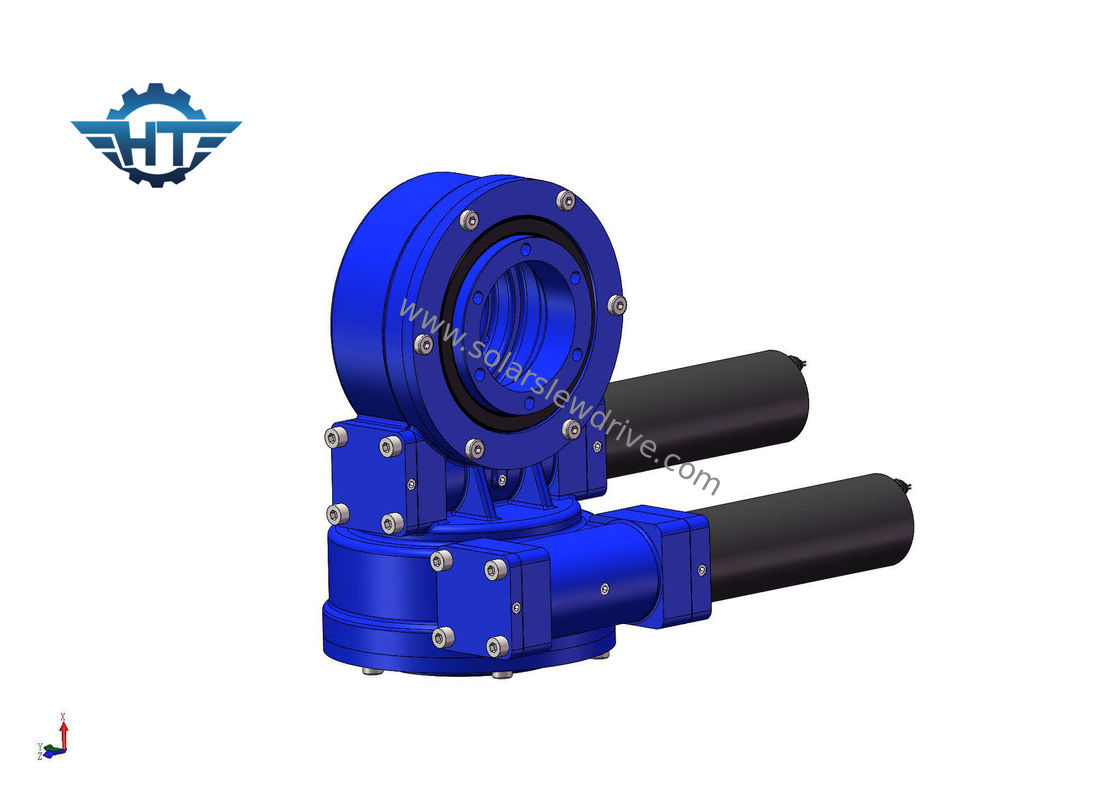

Dual Axis Solar Slew Drive With 24VDC Motor And Encoders For Dual Axis Trackers And Satellite
Description
We will put make perfect products and provide customers with satisfactory application experience as our continuous goal. We are very glad to use our professional skills to provide customers with high-quality products, and hope that through continuous cooperation, enhance mutual understanding and communication, and achieve a win-win situation.
Our Services & Strength
1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System .
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.
Features
1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
Technical Data of SDE Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
Application
The slew drives can be used for flat-panel transporter, crane, and single column crane, lift lifting, with car crane, aerial vehicle, day cruise solar energy, automation equipment and other mechanical equipment. In the solar photovoltaic power generation industry, slew drives are generally equipped with DC planetary motor or AC reducer motor, and the hydraulic motor is used as the power drive system on the construction machinery.
Dual axis slewing drives are used in dual axis solar trackers, heliostats, concentrated photovoltaics (CPV), and satellite antenna.
By applying a dual axis slewing drives on a solar system, the panels will always be oriented towards the sun, no matter the season, time of the day or latitude of the regions. It can let the project owner gain more electricity capacity up to 40%. And thus more yield.
Packaging & Shipping
1.Filling with rust-proof oil
2.packing with protective layers
3.Fixed in the Plywood case, Pallet, Steel frame
