6 Inch IP66 Protection Solar Slew Drive For Solar Trackers

6 Inch IP66 Protection Solar Slew Drive For Solar Trackers

  • 6 Inch IP66 Protection Solar Slew Drive For Solar Trackers
  • 6 Inch IP66 Protection Solar Slew Drive For Solar Trackers
6 Inch IP66 Protection Solar Slew Drive For Solar Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE6
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~330/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: VE6
Gear Ratio: 51:1 Rated Output Torque: 6120 Nm
Holding Torque: 45000 Nm Tilting Torque: 5000 Nm
Efficiency: 40% Standard Color: RAL 9006
High Light:

6 Inch Solar Slew Drive

,

IP66 Protection Solar Slew Drive

,

Solar Trackers Slew Drive

High Efficiency 6 Inch Solar Slew Drive With IP66 Protection Grade For Solar Trackers



Description

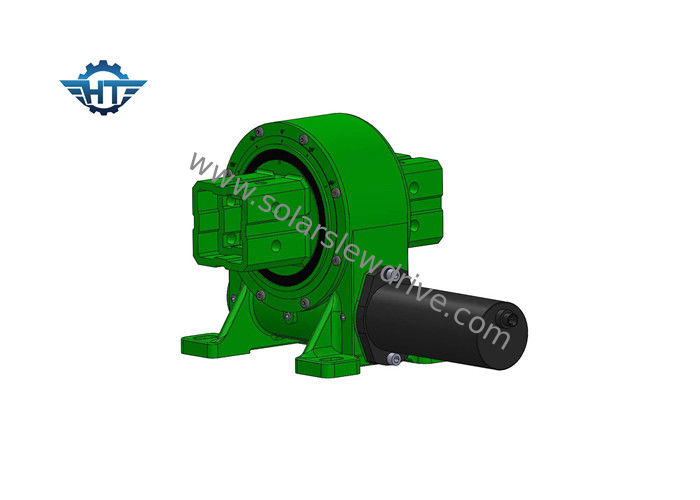

The 6 inch vertical slew drives are mounted vertically, it is specifically designed for flat single axis solar tracking systems that required tracking towards the sun for east to west. The precisely rotation of the vertical slew drive allows the mechanism to track perfectly. This kind of vertical slewing drive is manufactured using the latest technology which incorporates hourglass mechanism.

Advantages

1. High backholding torque to improve the solar tracking system's safety
2. 360 degree rotating range
3. Enveloping worm drive inside
4. Multi-tooth contact to ensure high load
5. Self-locking function

Technical Data



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg


Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
