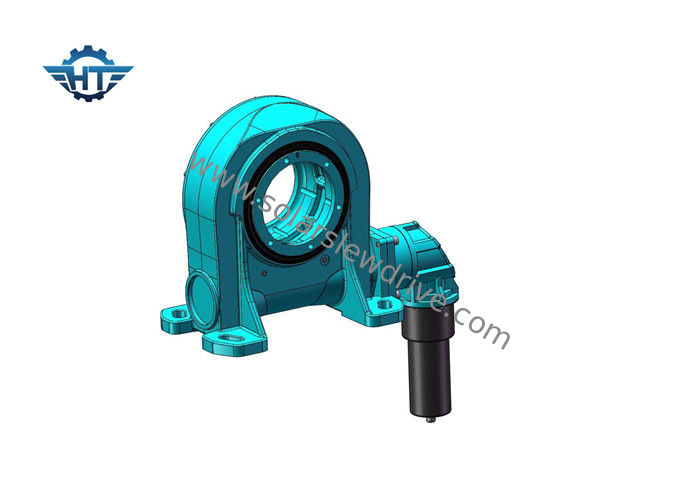

VE7 Solar Tracker Slew Drive with 24VDC Gear Motor For 2 Portrait pV Solar Tracking System

VE7 Solar Tracker Slew Drive with 24VDC Gear Motor For 2 Portrait pV Solar Tracking System

  • VE7 Solar Tracker Slew Drive with 24VDC Gear Motor For 2 Portrait pV Solar Tracking System
  • VE7 Solar Tracker Slew Drive with 24VDC Gear Motor For 2 Portrait pV Solar Tracking System
VE7 Solar Tracker Slew Drive with 24VDC Gear Motor For 2 Portrait pV Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~380/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Type: VE9 Material: 42CrMo Or 50Mn
Warranty: 5~10 Years Size: 3 Inch To 25 Inch
Type Of Tooth: Helical Tooth Motor: DC Motor
Color: Customer Required Application: Solar Tracker
High Light:

slewing drive for solar tracking system

,

solar tracker drive



VE9 Solar Tracker Slew Drive With 24VDC Gear Motor For 2 Portrait Pv Solar Tracking System



Description



Hangtuo’s slewing drives employ precision technology that provides a large ratio in a single stage of gearing. The bearing and gears are assembled into a low profile, self-retaining, and ready-to-install housing. We have the capability to provide custom solutions for specific applications.



Features



These highly-adaptable products also feature strong shock resistance, long life performance, smooth rotation, bearing protection, and sealed drive options.



Applications



Our products include slewing drives and related components, which are mainly applied in single or dual axis solar tracking systems, construction vehicles, port machinery, modular vehicles and small wind power systems.



VE7 Solar Tracker Slew Drive with 24VDC Gear Motor For 2 Portrait pV Solar Tracking System 0



Slewing drives/reducers are being chosen by customer from home and aboard for PV/CPV/CSP solar thermal tracking systems due to the combination of slewing ring with the hourglass worm shaft, which provides more tooth contact, increased drive torque and smoother rotation. There are different sizes available from 3 inch to 25 inch with more than 60 models to meet both regular and precise tracking requirements in PV, CPV, CSP and solar thermal power tracking fields.



Technical Data



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251
