VE9 Enclosed House Worm Gear Small Slew Drive For 2 Portrait Single Axis Trackers

VE9 Enclosed House Worm Gear Small Slew Drive For 2 Portrait Single Axis Trackers

  • VE9 Enclosed House Worm Gear Small Slew Drive For 2 Portrait Single Axis Trackers
  • VE9 Enclosed House Worm Gear Small Slew Drive For 2 Portrait Single Axis Trackers
VE9 Enclosed House Worm Gear Small Slew Drive For 2 Portrait Single Axis Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~380/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 9 Inch Gear Ratio: 61:1
Efficiency: 40% Accuracy: ≤ 0.1°
Driver: Electric Motor Type: Vertical Mounted
Application: Industrial Color: As Requested
High Light:

solar tracker drive

,

slewing drive for solar tracking system

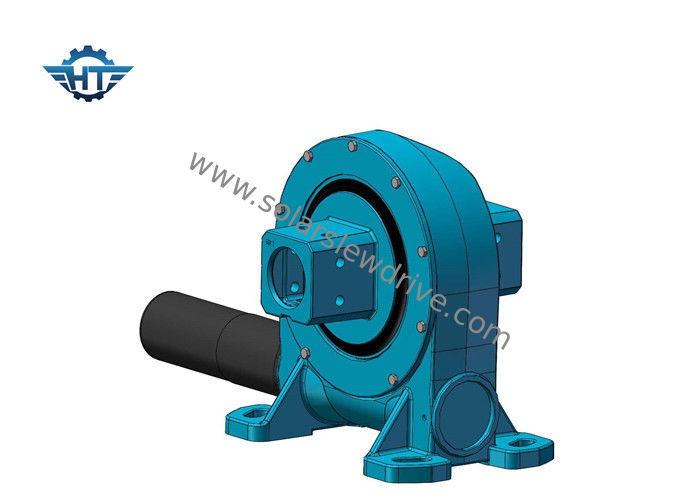

VE9 Enclosed House Worm Gear Slew Drive With 12*12 Square Tube For 2 Portrait Single Axis Trackers



Description



The name of slewing drive is also called slewing gear, rotary drive, rotary drive axle, rotary drive device, slew drive, slewing gear, and rotary drive unit. At present the majority of such devices are called the slewing drives.



Our slewing drive movement can reduce power consumption. It can withstand the axial load, radial load and overturning moment. It features easy installation, easy maintenance, and installation space savings advantages to a greater extent.



The general configuration is DC planetary reduction motor or AC geared motors in the solar photovoltaic industry while the hydraulic motor as a power-driven in construction machinery.



Parameters of VE slewing Drives



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Advantages



1. Strong overturning moment based on slewing ring

2. Adopt enveloping worm drive

3. Drive larger load for using multi tooth contact

4. Better static self-locking function



Application



It’s application include solar power systems, special vehicle steering, heavy-duty flat-panel truck, container cranes, truck mounted crane, automobile crane and aerial vehicles, cranes, gantry cranes, small wind power stations, space communications, satellite receiver, etc..
