Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Type: | Enclosed | Application: | Construction Machinery |
|---|---|---|---|
| Driver: | Hydraulic Motor | IP Grade: | IP66 |
| Color: | As Requested | Effciency: | 40% |
| Model: | VE9 | Ratio: | 61:1 |
| High Light: | slewing drive for solar tracking system,solar tracker drive |
||

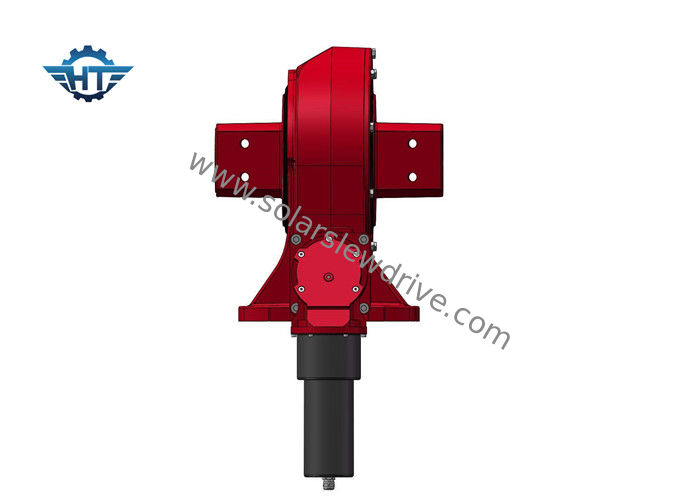

Vertial Worm Gear Slew Drive With Hourglass Worm For Linkage Single Axis Tracking System
Description
Vertical designing is the biggest bright spot of Hangtuo slewing drives ,the vertical designing is mainly used for the solar tracker system , the special structure simplifies the complex structure of the single axis solar tracking system bracket, reducing the cost of whole system, the vertical designing is playing a more competitive role in the solar tracker market.
| Model: | VE9 | Place of Origin | Changzhou,China |
| Brand | HANGTUO | Type | Enclosed |
| Material | 42CrMo,50Mn | Output Torque | 7320 N.m |
| Tilting Moment Torque | 18300 N.m | Holding Torque | 51000 N.m |
| Static Axial Rating | 90 KN | Static Radial Rating | 160 KN |
| Dynamic Axial Rating | 45 KN | Dynamic Radial Rating | 80 KN |
| Gear Ratio | 61:1 | Efficiency | 40% |
Applications
The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
SDE Dual-Axis Positioner Specifications
Features
1. Vertical enclosed designing with single or double output.
2. Using hourglass worm gear, multi-tooth contacting, transfer high torque to withstand greater load.
Technical Data of VE Series Slewing Drive
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Applications
There are many applications where a rotary drive can be used, primary because it is well suited for applications that require load to maintain power and rotational torque.
Typical swing drive applications include, but are not limited to:
1.Solar tracker
2.Wind Turbines
3.Men's lift
4.Hydraulic machinery
5.Telehandler
6.Excavator
7.Lift
8.Cranes
9.Drilling equipment
10.Military equipment
