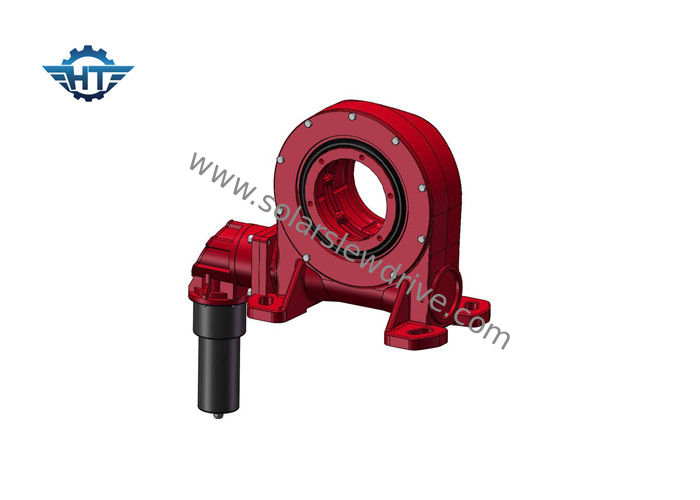

VE9 Slew Drive Gearbox Fitted To 12*12 Main Tube For Horizontal Single Axis Tracking System

VE9 Slew Drive Gearbox Fitted To 12*12 Main Tube For Horizontal Single Axis Tracking System

  • VE9 Slew Drive Gearbox Fitted To 12*12 Main Tube For Horizontal Single Axis Tracking System
  • VE9 Slew Drive Gearbox Fitted To 12*12 Main Tube For Horizontal Single Axis Tracking System
VE9 Slew Drive Gearbox Fitted To 12*12 Main Tube For Horizontal Single Axis Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: VE9"
Gear Ratio: 61:1 Normal Torque: 7320 Nm
Holding Torque: 31~45 KNm Tilting Torque: 16~21 KNm
Efficiency: 40% Standard Color: RAL 9006
High Light:

slewing drive for solar tracking system

,

solar tracker drive

9 Inch Slew Drive Gearbox Fitted To 12*12 Main Torque For Single Axis Tracking System



Description



The VE9 is a robust enclosed worm gear slewing drive solution equipped for high duty cycle, low-speed (<1 RPM) applications. It mainly applied in solar energy.



Advantages



1. High backholding torque to improve the solar tracking system's safety

2. Hard stop inside in case the mulfunctioning of the software control system

3. Enveloping worm drive inside

4. Multi tooth contact to ensure high load

5. Self-locking function



VE9 Slew Drive Gearbox Fitted To 12*12 Main Tube For Horizontal Single Axis Tracking System 0



Parameters of VE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.



Applicatons



Flat single axis solar tracking system

Tilted single axis solar tracking system

CSP, fresnel, parabolic absorber

Single axis tracking system includes the flat single axis and tilted single axis.
