Model: | SE9 | Gear Ratio: | 61:1 |
---|---|---|---|
Application: | Solar Trackers | Place Of Origin: | Changzhou, China |
Driver: | Planetary Gear Motor | Certificate: | ISO9001, CE |
Installation: | Single Axis | Maintenance: | Free |
Color: | As Requested | Backlash: | 0.1 Degree |
High Light: | slewing drive for solar tracking system,solar tracker drive |

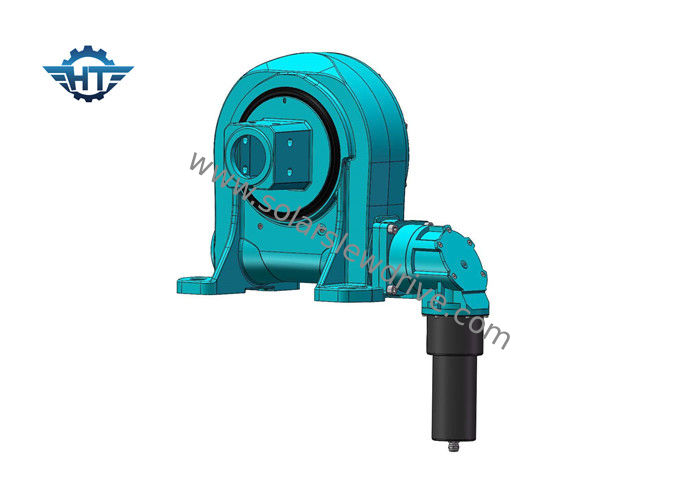

SE9 Horizontal Slew Drive Gearbox With 24 VDC Planetary Motor For Solar Trackers
Product Description
Slewing drives are having rotating modules are compact rotational units integrated in a cast iron housing that contains a turning ring with a gear. The gear rotates the turning ring with great precision and allows for smooth rotation and maximum effort. Slewing Drive have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.
SE Slew Drive Data Sheet
Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Main Advantages
1. Rotation 360 degrees
2. Connection of a driving motor from the left or right side
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Grease had been filled before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High tilting torque, suitable for horizontal installation
