Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE21 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | 100 USD/Piece |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | 21 Inch | Gear Ratio: | 125:1 |
|---|---|---|---|
| Efficiency: | 40% | Precise: | ≤0.1 |
| Driver: | Electric Motor | Type: | Single Axis |
| Application: | Solar Panel | Color: | As Requested |
| High Light: | slewing drive for solar tracking system,solar tracker drive |
||

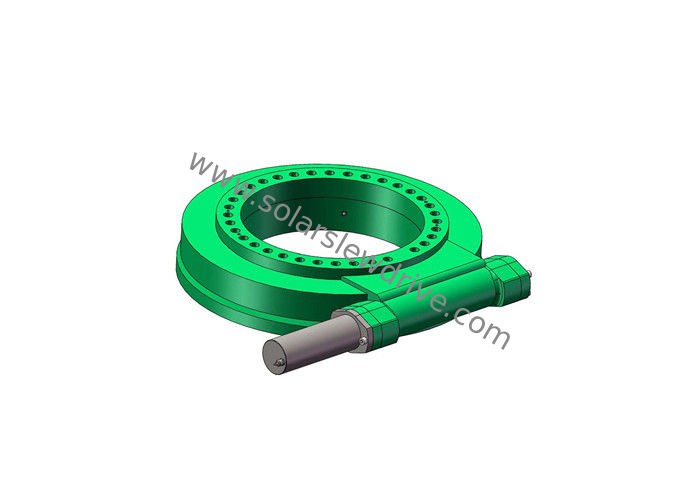

Wind-resistance Solar Tracker Slew Drive With Cost Saving Feature and High Performance For Solar
Description
The slew drive is mainly for solar tracker which is widely used in solar photovoltaic tracking system and other new energy industries at home and abroad. Because of its multi-teeth contact, large transmission torque and smooth operation, and also its large radial and axial loads and strong overturning moment torque in order to withstand large wind.
Our slewing drive have been proved well performed under extreme working conditions. We provided slew drives with cost savings from 1 inch to 25 inch. We also provide customized designing service.
Advantages
1. short lead time. Sample in 7 days, 15~45 days in bulk.
2. full inspection before delivery.
3. customized service provided.
4. instant reply
Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Applications
It has been widely used in new energy equipment, such as solar power tracking system, wind power rotation and industrial automation. Slewing drive is mainly used in aerospace, tower crane, excavator, construction machinery, conveying machinery, elevator, high altitude operation, satellite communication system, solar tracking system and many other industries.
