Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE9 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | 9 Inch | Gear Ratio: | 61:1 |
|---|---|---|---|
| Efficiency: | 40% | Type: | Horizontal |
| Application: | Solar Energy | OEM Service: | Available |
| Place Of Origin: | Changzhou, China | Driver: | 24vdc Motors |
| High Light: | slewing drive for solar tracking system,solar tracker drive |
||

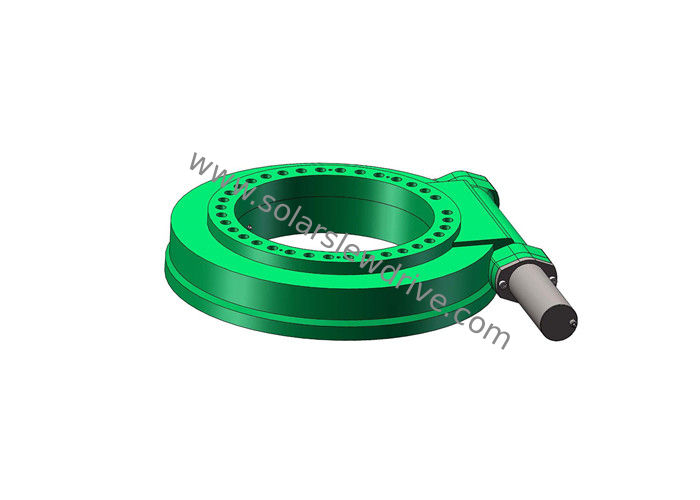

High Accuracy Solar Slewing Ring Drive With IP66 Anti-dust and Anti-Water Grade For Industrial Use
Description
How to choose a proper slewing drive for your application?The following points can be taken into account when deciding.
1. Load capacity, direction. The load on the slewing drive and the direction of the load should be take into account when choosing a suitable slewing drive.
2. Required speed. The slewing drive can be rotate in a very slow speed.
3. Application. Basically, the dual axis slewing drive is applied in dual axis solar tracking system, satellite antenna etc which need rotate at both directions. The SE slewing drive with a high tilting torque is applied in construction machinery or other industrial uses. The VE series slewing drive is used in single axis solar tracking system to tracking the sun from east to west.
Features
1. Hour-glass worm for competitive gear contact and life, and static load capacity
2. Multiple precision levels: variable backlash for different application needs
3. Standard sealing and grease fill
4. Great anti-water and anti-dust design, IP66
5. Self-locking, no need of break
6. Envelop worm
7. Key applications: PV Solar, Aerial Work Platforms, Truck Cranes, Marine Cranes
Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
