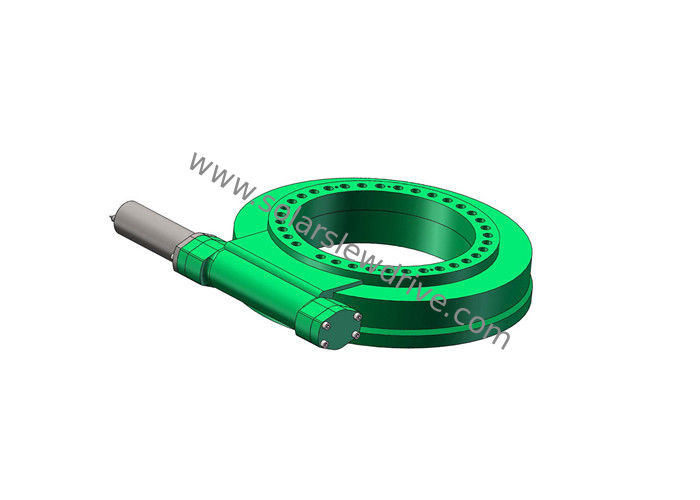

Iron Made Worm Gear Slew Drive With IP66 Encapsulated Design Used in Solar Tracking System
Product Description
The slewing drive have made a decisive contribution to the development and improvement of solar tracking system including single axis solar tracking system and dual axis solar tracking system, particularly through its compact design, high load capacity, small backlash, IP66 high anti-water and anti-dust grade, easy installation, self-locking and more and more cost effective cost.
Features
1. function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear, in general, the shaft is driven by electric gear motor.
2. high gear ratio. This feature meet the technical needs of low speed rotation.
3. usd hourglass worm technology to uncrease tooth engagement results in greater strength, efficiency and durability.
4. ready-to-install design
5. highest torques of all available solutions on the market
6. encapsulated housing
7. IP66 design
8. designed for durability with minimal maintenance
Parameters of SE7
| Model: | SE7 | Place of Origin | Changzhou,China |
| Brand | HANGTUO | Type | Enclosed |
| Material | 42CrMo,50Mn | Output Torque | 2000 N.m |
| Tilting Moment Torque | 1.35 K N.m | Holding Torque | 1.32 K N.m |
| Static Axial Rating | 132 KN | Static Radial Rating | 58 KN |
| Dynamic Axial Rating | 66 KN | Dynamic Radial Rating | 38 KN |
| Gear Ratio | 57:1 | Efficiency | 40% |
Applications
solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
Technical Data of SE Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
