Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE21 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 860~900/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | SE21 |
|---|---|---|---|
| Gear Ratio: | 125:1 | Efficiency: | 40% |
| Precision: | ≤ 0.1 | Driver: | Motor |
| Color: | Requested | Application: | Industrial Use |
| High Light: | worm gear slewing ring,worm gear motor |
||

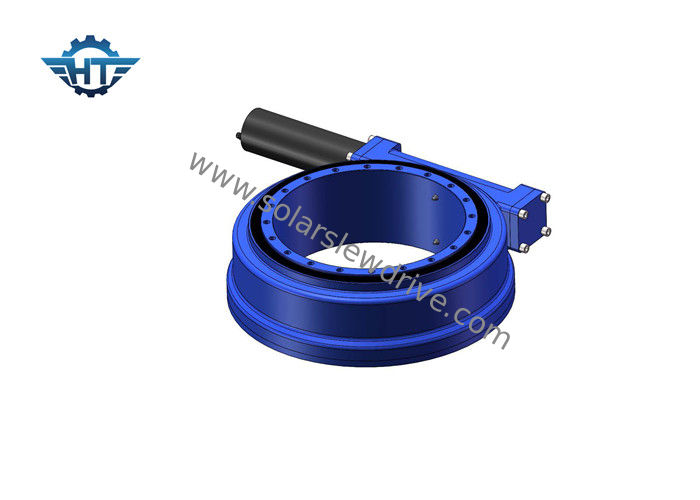

SE Worm Gear Solar Slew Drive Featured With High IP66 And Ready To Intall For Solar Tracker
Product Description
Our slewing ring bearings are ready-to-install rotary joints for self-lubricating, dry operation. The designe is based on maintenance-free materials. Besides, the high IP66 rating can make them used in applications with high temperatures, moisture, chemicals and even for food processing.
Features
1. The flange is easy for direct mounting on flat surfaces
2. Lubricating before factory
3. Corrosion-resistant and hygienic
4. Wear-resistant
5. Resistant to dirt, dust and humidity
6. Robust
7. Ready-to-install
8. Easy to assemble
Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Packaging
Wooden case free from fumigation.
Our Services
1. 24 hours online technical support
2. OEM available
3. Free custermized logo
