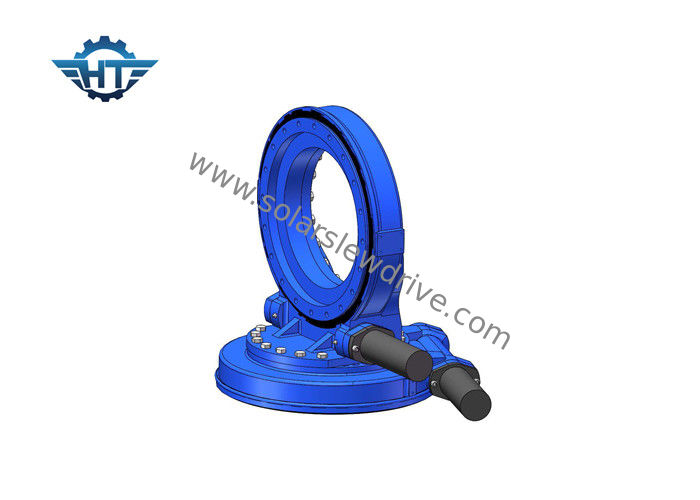

High Torque 17 Inch Dual Axis Worm Gear Slew Drive For Concentrated Photovoltaic

High Torque 17 Inch Dual Axis Worm Gear Slew Drive For Concentrated Photovoltaic

  • High Torque 17 Inch Dual Axis Worm Gear Slew Drive For Concentrated Photovoltaic
  • High Torque 17 Inch Dual Axis Worm Gear Slew Drive For Concentrated Photovoltaic
High Torque 17 Inch Dual Axis Worm Gear Slew Drive For Concentrated Photovoltaic
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE17
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 1250 usd/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Brand Name: Hangtuo Material: 50Mn, 42CrMo
OEM: Available Certificate: ISO9001, CE
Matched Motor: Electrical Motor Package: Plywood Case
Color: As Requirement Precision: ≤0.1°
High Light:

worm gear slewing ring

,

worm gear motor

High Torque 17 Inch Dual Axis Slewing Ring Bearing For Concentrated Photovoltaic



Description



Slewing ring bearings may be small, but they help do the largest jobs in the business. From swing arm rotation on cranes to the platform on a wind turbine, slewing rings are an integral part of many machinated processes. Welcome to purchase the high quality and functional dual axis slewing drive worm gear for sun tracking system from Hangtuo, an experienced team in solar tracking industry.



Features



1. test all of our products for quality and reliability

2. create customized solutions with a 30-year field life

3. all our drives meet the standards set by ISO 9001, CE certifications

4. our components and final assemblies are qualified

5. designed to hold heavy loads and withstand high forces without breaking

6. self-lock, no need of break

7. built with hourglass worm which increase gear engagement



SDE Type Data Sheet



Model Ratio Rated Output Torqu(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Traceability



1. Customer feedback Contract No & Serial No.

2. Container No.

3. Production date

4. Key component lot No.

5. Key material certificate

6. Inspection Report
