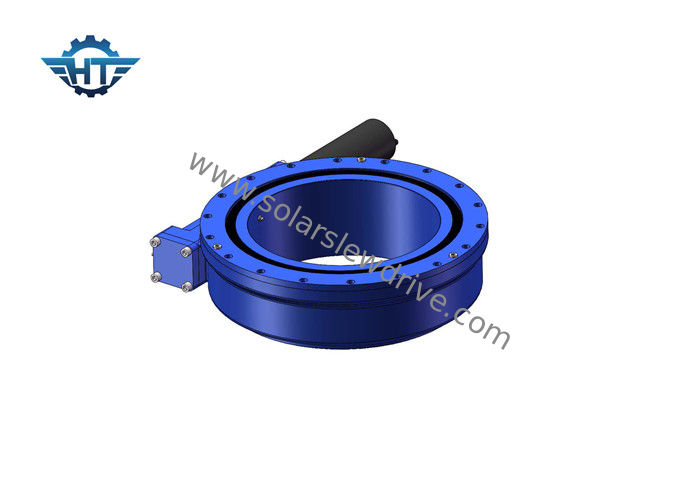

SE17 Single Axis Slew Drive With IP66 Enclosed Housing And Envelop Worm For Solar Trackers

SE17 Single Axis Slew Drive With IP66 Enclosed Housing And Envelop Worm For Solar Trackers

  • SE17 Single Axis Slew Drive With IP66 Enclosed Housing And Envelop Worm For Solar Trackers
  • SE17 Single Axis Slew Drive With IP66 Enclosed Housing And Envelop Worm For Solar Trackers
SE17 Single Axis Slew Drive With IP66 Enclosed Housing And Envelop Worm For Solar Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE17
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 284/pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: SE17
Gear Ratio: 57:1 Rated Output Torque: 9400 Nm
Tilting Torque: 135600 Nm Holding Torque: 65040 Nm
Efficiency: 40% Application: Solar Energy
High Light:

slewing drive for solar tracking system

,

solar tracker drive

SE17 Single Axis Slew Drive With IP66 Enclosed Housing And Envelop Worm For Solar Trackers



Description



SE slew ring bearing drive can bear axial force. It is designed in compact structure for construction machinery, habor machinery, aerial platform vehicle, military,  etc.  It is also widely used in solar tracking system to produce an efficient solar generation system such as single axis solar tracking system and dual axis solar tracking system.



SE17 Single Axis Slew Drive With IP66 Enclosed Housing And Envelop Worm For Solar Trackers 0



Two SE slewing drives can be installed in the system and achieve azimuth and elevation direction rotating at the same time. It is believed that will contribute significantly in increasing the efficiency of energy collectin from the pv panels. Tracking is reported to potentially double the energy yield of a fixed PV solar system.



SE17 Slew Drive Parameter



Product Name SE17 Slew Drive
Output Torque 9400 N.m
Tilting Moment Torque 135600 N.m
Holding Torque 65040 N.m
Static Axial Rating 980 kN
Static Radial Rating 390 kN
Dynamic Axial Rating 490 kN
Dynamic Radial Rating 245 kN
Motor Alternatives 380V/220V AC Motor, DC Motor
Products Style Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower
Application Feature Solar Tracking System, Industrial Machinery



Applicatons



The most common of SE slewing drive application is construction machinery. It can also for the dual-axis slewing drives are dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
