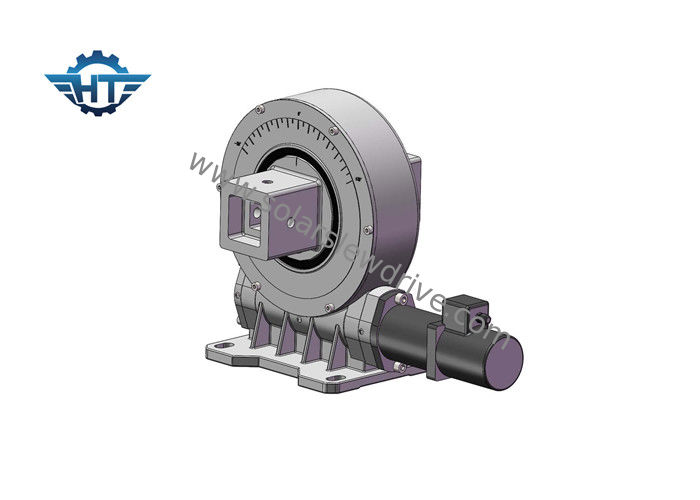

Planetary Gear Slew Drive Gearbox VE9 Self Lock Single Axis For Solar Tracking System

Planetary Gear Slew Drive Gearbox VE9 Self Lock Single Axis For Solar Tracking System

  • Planetary Gear Slew Drive Gearbox VE9 Self Lock Single Axis For Solar Tracking System
  • Planetary Gear Slew Drive Gearbox VE9 Self Lock Single Axis For Solar Tracking System
Planetary Gear Slew Drive Gearbox VE9 Self Lock Single Axis For Solar Tracking System
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 200~380 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Type: Slewing Drive Material: 42CRMN Or 50Mn
Application: Solar Power System Warranty: 10 Years
Color: Customer Required Size: 3 Inch - 25 Inch
Motor: 24VDC/220VAC Feature: Long Life
High Light:

worm gear slewing ring

,

worm gear motor

Planetary Gear Slew Drive Gearbox, VE9 Self-lock Single Axis For Solar Tracking System



Description



VE, vertical series planetary gear slew drive gearbox's applications mainly for winch crane, slewingdeck crane, crane winch design, excavator swing drive, slewing drive for solar tracking system etc. Our unique planetary gear reduction gearbox working principle makes itself for solar
tracker bear a big radial load due to the proportionate distribution of torque. What's more, our slewing drives has hydraulic motor configurations. We have all series slew gearbox size meet customer different demand.



Features



1. Rotate  ±60°, hard stop inside to ensure system safety

2. Connect a driving motor from the left or right side

3. The clearance is already set by the producer before factory, no need to adjust when installation

4. Grease had been filled before factory

4. Simple installation and low maintenance

5. Compact design and space saving

6. The gear is self-locking, no need of brake

7. Easy and fluent method of starting and stopping

8. High tilting torque, suitable for horizontal installation



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Application



Slew drives are used around the world. The application areas include the following: As steering transmission in crane traveling gears and
heavy-duty transporters, in lift platforms, in grippers, tongs, and other rotary devices in the construction machine sector.



Solar tracking systems, wind energy, dishes, satellite antenna etc.
