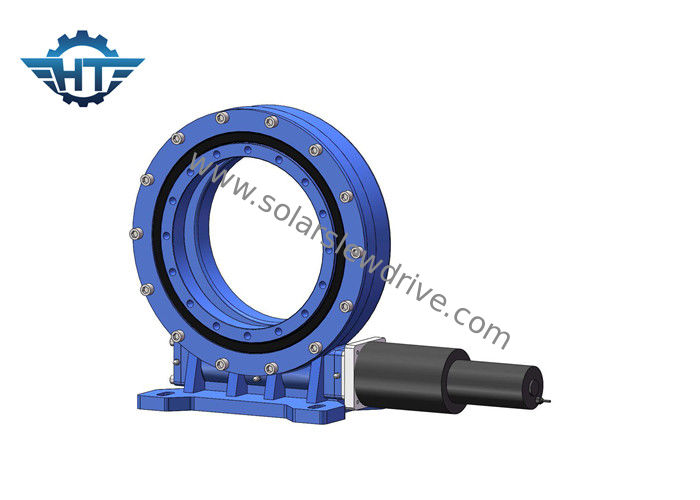

IP66 Mini Backlash Slewing Bearing For Linkage Solar Panel Tracking System

IP66 Mini Backlash Slewing Bearing For Linkage Solar Panel Tracking System

  • IP66 Mini Backlash Slewing Bearing For Linkage Solar Panel Tracking System
  • IP66 Mini Backlash Slewing Bearing For Linkage Solar Panel Tracking System
IP66 Mini Backlash Slewing Bearing For Linkage Solar Panel Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 300~380/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: Vertical Slew Drive Self-lock: Yes
Certificate: ISO9001,CE Warranty: 5~10 Years
Material: 50Mn,42CrMo Application: Solar Tracking System
Color: As Requested IP Grade: IP66
High Light:

solar tracker drive

,

solar slew drive

IP66 Small Backlash Slewing Bearing For Linkage Solar Panel Tracking System



Product Description

The rotation of the solar panels is a good solution to increase the production of energy. The vertical series slewing bearing, slewing drive are typically designed for the application of solar tracking system. It adopts enclosed design and the protection level can reach IP66 to meet harsh environment working conditions. It can effectively prevent dust, rain and other hard conditions. It suits field usage such as desert, alpine and other hostile environments.


Features

1. Easy to mount and maintain.
2. The design and mounting dimensions are normal dimensions which is easy for the users' replacements



The vertical slewing bearing drive is generally installed perpendicular to the ground and is widely used in various photovoltaic power generation projects, such as parabolic or trough Csp power generation, fresnel Csp power generation, flat single axis solar tracking system, oblique solar tracking system. It is with high precision, usually this model with enclosed housing, it can prevent dust and water from entering the inside.



Performace of VE Series

Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Our Services

Our engineering and design department will propose you innovative solutions, using the most modern software. We can design parts specially adapted to your needs.



Package and Delivery

We packed the slewing ring drives by fixed them into the plywooden box in case of any damage movement.

For samples, the common shipping way is shipped to door by DHL, UPS, FEDEX or TNT express.

For bulk orders, we can ship by sea which is quite cost effective way.
