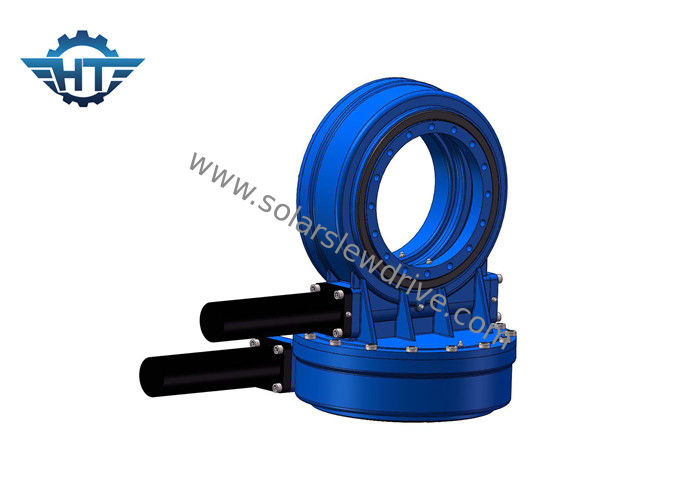

High Stoque Small Slew Ring Bearing Geared Drive For Dual Axis Heliostat And Parabolic
Description
Our SDE series slewing drive mainly used for PV, STP, CSP solar tracking systems, this model is dual axis for horizonal and elevation directions. It can be used for 10 square meters of solar panels.
We are committed to researching, developing and applying high quality, precision slewing drives, we provides reliable horizonal single axis, dual-axis slewing bearings and slewing drives for solar tracking systems, CSP,CPV solar trackings etc. Our professional and high-quality products will be also applied well as a steady solution on aerial working platform, truck crane, timber grab, drilling rig, spray equipment, hydraulic module vehicle,automated assembly lines, wind yaw systems,etc.
Advantage
1. Strong overturning moment based on slewing ring
2. Adopt enveloping worm drive
3. Drive larger load for using multi tooth contact
4. Self-locking function
SDE Performance Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Applications
The most common applications of slewing ring bearings or slewing drives are dual-axis solar trackers and single axis solar trackers, such as heliostats, parabolic, fresnel and concentrated photovoltaics (CPV), satellite or radar dishes, flat or oblique single axis solar trackers etc. Other applications include automotive lifts , robotic arm positioners , and stage equipment.
