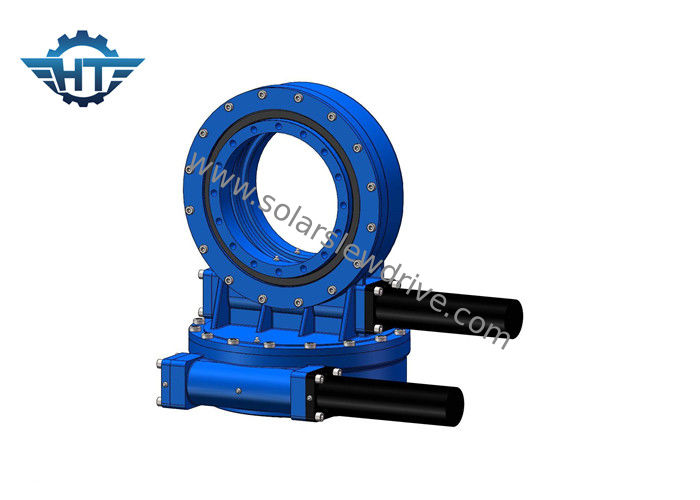

Hourglass Worm Gear Slewing Ring Bearing For Parabolic Csp With Curved Mirrors

Hourglass Worm Gear Slewing Ring Bearing For Parabolic Csp With Curved Mirrors

  • Hourglass Worm Gear Slewing Ring Bearing For Parabolic Csp With Curved Mirrors
  • Hourglass Worm Gear Slewing Ring Bearing For Parabolic Csp With Curved Mirrors
Hourglass Worm Gear Slewing Ring Bearing For Parabolic Csp With Curved Mirrors
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE3
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1200/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: SDE3
Gear Ratio: 31:1 Rated Output Torque: 600 Nm
Holding Torque: 5800 Nm Tilting Torque: 1800 Nm
Efficiency: 40% Standard Color: RAL 9006
High Light:

solar slew drive

,

slewing drive for solar tracking system


Hourglass Worm Gear Slewing Ring Bearing For Parabolic Csp With Curved Mirrors

Description

The slewing drive is a perfect motion control product for the application which requires rotational torque strength, low speed and good accuracy.



Slew drive for solar: it is designed in solar photovoltaic panel rotation and improves power generation efficiency. Concentrated solar powers include solar concentrator solar dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic trough, PV tracker(single axis & dual axis solar tracking solutions).


For wind generators: Slewing drives are used to rotate the pedestal in wind turbines


For Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, cranes, timber grab


For Industry Market: Automation and CNC assembly line, robotic arm


For Satellite: space communications and global positioning systems in satellite dish



Hourglass Worm Gear Slewing Ring Bearing For Parabolic Csp With Curved Mirrors 0



Applicaiton in Parabolic CSP​

Slewing drives are a perfect rotating part for CSP parabolic trough. A parabolic trough applies sun-tracking curved mirrors (called parabolic troughs) to maximize the sun’s energy and consequently the efficiency of heat production. The sun's rays are captured and reflected onto a receiver pipe filled with a heat transfer fluid (water or thermal oil) that is located in the central point of the troughs.



Advantages
1. Our technical team is focusing on slewing drive design and develop for more than 10 years
2. Strict process control, leading test methods, cargo traceability
3. Professional techical service team to solve any problem of slewing drive

SDE Series Performance Parameter



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705


About Us

We are committed to researching, developing and applying high quality, precision transmission equipment products, who provides reliable mechanical actuator for horizonal single axis, dual-axis photovoltaic tracking system, CSP, CPV solar tracking design.
