Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE7 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | SE7 | Gear Ratio: | 57:1 |
|---|---|---|---|
| Efficiency: | 40% | Color: | As Requested |
| Application: | Solar Trackers | Place Of Origin: | Changzhou, China |
| Warranty: | 5~10 Years | Certificate: | ISO9001, CE |
| Maintenance: | Free | Gearing Arrangement: | Worm |
| Highlight: | solar slew drive,slewing drive for solar tracking system |
||

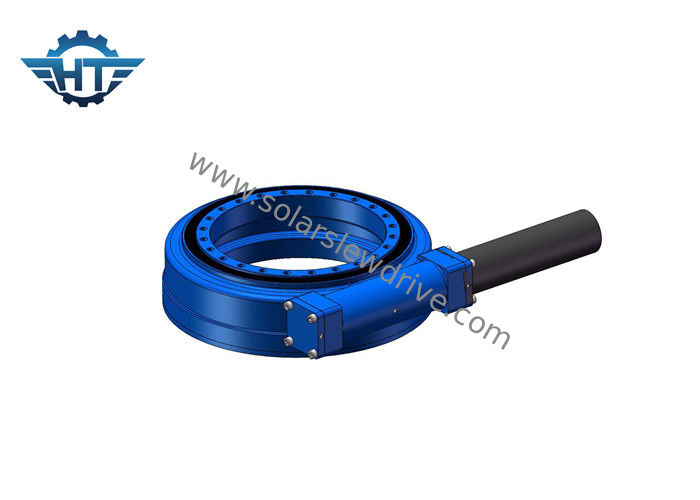

SE Small Slew Bearing With IP65 Electric Gearbox For Solar Tracking System
Description
We have highly qualified professionals offer all technical support, from designing the bearing to subsequent installation and operation of the slewing bearing and slewing drive. We ensure the highest quality of slewing bearings and slewing drives using a production traceability system and fully implementing control processes.
Advantages
Our slewing bearings are applied in occasions where heavy load is needed. Our newly designed slewing drive is a secure self-locking product, it's easy installation and have long field working life. Our experienced customer service representatives provide fast, reliable, and friendly customer service. Our flexible manufacturing and inventory management systems offer industry best lead time. Our products including modified standards or custom designs to meet specific application needs.
How to Choose?
There are many types of slew drives or slewing bearings, which can be selected taking into account the following factors.
1. Load capacity, direction and properties: The slew drive is suitable for bearing light loads, and roller bearings are suitable for heavy loads and impact loads.
2. Allowed speed
3. Rigidity
4. Tuning performance and installation error
5. Slew drive installation and disassembly
Performance Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Applications
Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
