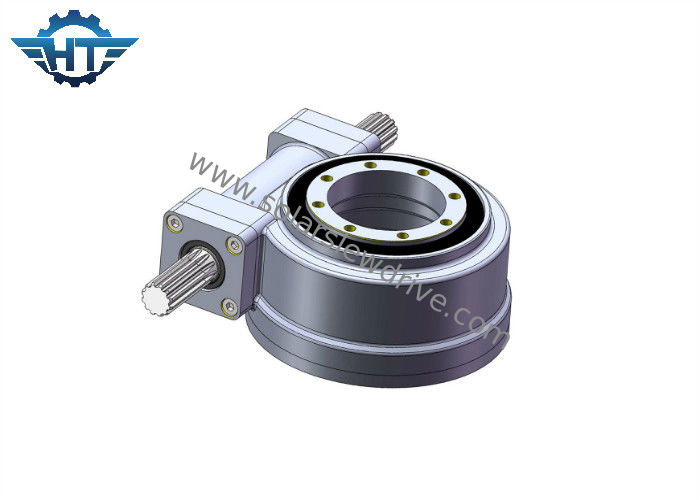

SE3 Worm Gear Small Slew Drive Slewing Ring Bearings For Lingkage Solar Tracking System

SE3 Worm Gear Small Slew Drive Slewing Ring Bearings For Lingkage Solar Tracking System

  • SE3 Worm Gear Small Slew Drive Slewing Ring Bearings For Lingkage Solar Tracking System
  • SE3 Worm Gear Small Slew Drive Slewing Ring Bearings For Lingkage Solar Tracking System
SE3 Worm Gear Small Slew Drive Slewing Ring Bearings For Lingkage Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE3
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Gear Ratio: 31:1 Normal Output Torque: 533 Nm
Place Of Origin: Changzhou, China Holding Torque: 7000 Nm
Tilting Torque: 744 Nm Rated Output Torque: 0.065 RPM
Usage: Solar Trackers Protect Feature: IP66
High Light:

solar tracker drive

,

slewing drive for solar tracking system

SE3 Worm Gear IP66 Slewing Ring Bearings For Solar Tracking System



Description



Slew Drive, commonly referred to as a Slewing Gear or Slew Bearings, is a complete, ready to install system that consists of a ball or roller slewing ring bearing, drive train, and completely enclosed housing. It can be customized with hydraulic or electric motors, brakes, planetary gearboxes, corrosion protection, as well as many other options.



Advantage



1. Employ a worm gear to achieve rotation, which are slower in speed but can magnify an input torque at much higher ratios and are used in applications requiring high torque

2. Enclosed design, IP66 protection grade which is perfect for outdoor harsh conditions like harbor, mining etc.

3. Self-lock feature which make it a safety part

4. Can attach different gear motor to gain large transmission gear ratio, thus giving the whole unit low speed with high torque



Parameters of SE Slew Ring Drive



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Remarks

1. Different motors (AC, DC, and Hydraulic) can be designed according to customer's requirement.

2. Shaft opposite to motor can choose to be hex head or not hex head.



Application
