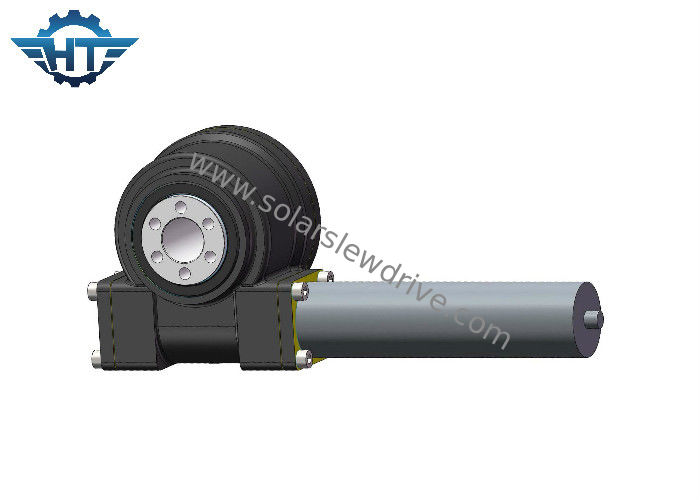

Se3 Small Slew Drive, Single Worm With High Torque For CNC Machine
Product Description
SE series slewing drive is a kind of large rotary drive with special structure, which can bear large axial load, radial load and overturning moment at the same time. It has many functions, such as supporting, rotating, driving, fixing and so on. Generally speaking, the slewing bearing can be applied in CNC machines, construction machinery ,robot, satellite antenna, solar energy, wind energy etc.
When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels. 3 inch slewing drive is suitable for solar power system coming with 3- 5 m2 solar panel, 7 inch for 10-17 m2 solar panel, 9 inch for 18-30 m2, 12 inch for 31-45 m2, and 14 inch for 46-60 m2. These are provided for your reference. For more specific and detailed information, please contact me directly.
Performace of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Installation
The SE slew drives can be mounted in two different ways, vertically or horizontally which is based on the evalution of the protection level and the installation demand of the project.
