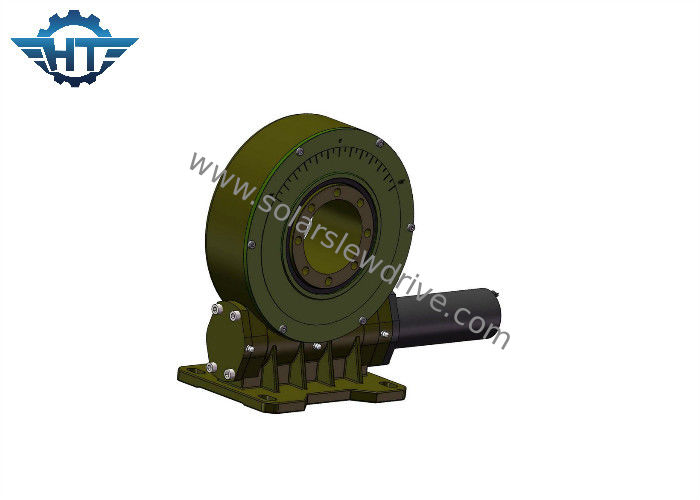

61/1 Ratio Vertical Worm Gear Slewing Bearing With Enclosed House For Solar Tracker

61/1 Ratio Vertical Worm Gear Slewing Bearing With Enclosed House For Solar Tracker

  • 61/1 Ratio Vertical Worm Gear Slewing Bearing With Enclosed House For Solar Tracker
  • 61/1 Ratio Vertical Worm Gear Slewing Bearing With Enclosed House For Solar Tracker
61/1 Ratio Vertical Worm Gear Slewing Bearing With Enclosed House For Solar Tracker
Product Details:
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE 9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Place Of Origin: Changzhou, China Model: VE9
Gear Ratio: 61:1 Application: Solar Energy
Driver: Planetary Gearbox Certificate: ISO9001, CE
Color: As Requested Backlash: ≤0.1°
High Light:

solar tracker drive

,

solar slew drive

61/1 Ratio Vertical Worm Gear Slewing Bearing With Enclosed House For Solar Tracker​



Product Description



Slewing drive refers to a mechanism that consists of a radial gear, an axial shaft called a worm, and a connected driving component. More advanced slew drives might include specific worm designs, such as envelop worm, protective enclosures and other auxiliary components. Slewing drives are capable of transferring forces and torque as well as sustaining those forces over time. There are many applications for slewing drives.



The most basic slewing drive has a radial gear driven by the worm. The teeth of the gear meet with the grooves in the worm and, as the worm turns, the gear also turns. Common features for different slewing drives can include an hourglass-shaped worm, which is often considered more efficient because multiple teeth on the gear can be engaged at once. Other features can include a protective enclosure meant to keep the mechanisms clean. The motor or driving component, like the spinning of a wind turbine, also might change the specific design of a slewing drive.

In general, the purpose of different slewing drive is to change axial movement to radial movement. Depending on the number of threads on the worm and the number of teeth on the gear, the speed and power of the axial force will be converted to a specific radical force. Depending on the application, a slewing drive might be useful for amplifying the torque that rotates a mechanism.

61/1 Ratio Vertical Worm Gear Slewing Bearing With Enclosed House For Solar Tracker 0

Parameters



Model: VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 4300 N.m
Tilting Moment Torque 16 K N.m Holding Torque 27.2 K N.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 61:1 Efficiency 40%
