Place of Origin: | China |
Brand Name: | HangTuo |
Certification: | CE, ISO9001 |
Model Number: | VE9 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 100~1600 / pc |
Packaging Details: | plywood box |
Delivery Time: | 15~45 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Model: | 9 Inch | Gear Ratio: | 61:1 |
---|---|---|---|
Efficiency: | 40% | Precise: | ≤ 0.1 |
Driver: | Electric Motor | Type: | Vertical Mounted |
Application: | Solar Tracker | Color: | Requested |
High Light: | solar slew drive,slewing drive for solar tracking system |

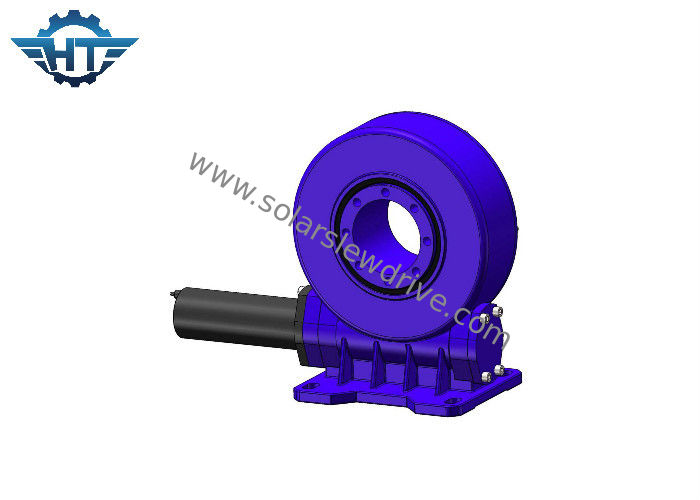

Vertical Worm Gear Slewing Drive, Strong Torque And IP66 For Solar Panel System
Description
We are good supplier of slewing drives. Slew drive for solar tracker is widely used in solar photovoltaic power generation tracking system and other new energy industries at home and abroad because of its multi-teeth contact, large transmission torque and smooth operation, and it can withstand large radial and axial loads and strong overturning moment (wind resistance).
Slewing drive is a main part in solar tracker. By adopting slewing bearing as its core component, slewing drive can bear axial force, radial force and tilting moment simultaneously. There are 10 different sizes available from 3" to 25" inch.
Application
Typical slew drive applications include solar industry, truck cranes, man lifts, utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability.
Parameters of VE Series
Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Advantages
1. Strong overturning moment based on slewing ring
2. Adopt enveloping worm drive
3. Drive larger load for using multi tooth contact
4. Better static self-locking function
