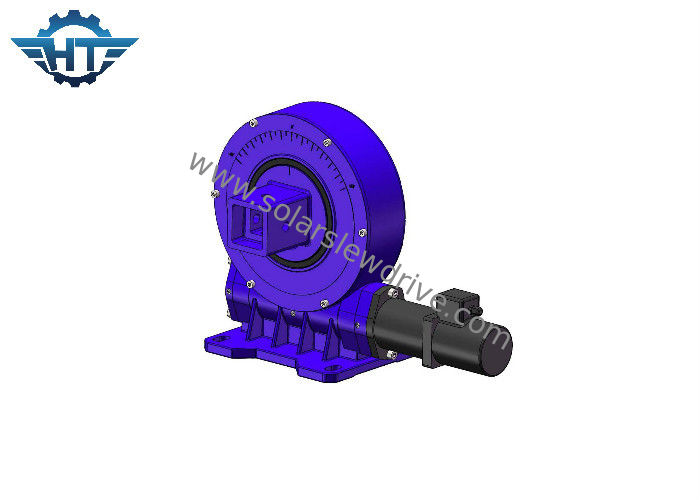

9 Inch Vertical Solar Slewing Drive For Horizontal Single Axis Solar Tracking System
Product Description
Solar power plants require robust drive systems with high accuracy, efficiency and virtually maintenance-free long-term operation showing a high degree of reliability. Only components specially designed for outdoor use can meet the requirements. Worm gear slewing drive are ideally suited for the azimuth adjustment of a tracker, since they can be used for virtually backlash-free transmission ratios and very slow movements. By target-oriented selection of defined materials, required parameters such as perfect wear behaviour, high fatigue strength and long-term corrosion protection are achieved and implemented.
Solar tracking controller include: horizontal slewing drive for oblique single axis tracking system and flat single axis oblique single axis tracking system horizontal slew drives are the most-effective solar tracking solutions.
Performace of VE Series
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Features
From material to finished product, our worm drives are designed, tested and guaranteed for tracking accuracy of efficiency according to customers’special requirements.
Slewing drive can realize unlimited circumferential rotation and speed reduction, and can withstand larger axial force, radial force and overturning force. It enjoys advantages of high accuracy, compact structure and large carrying capacity.
