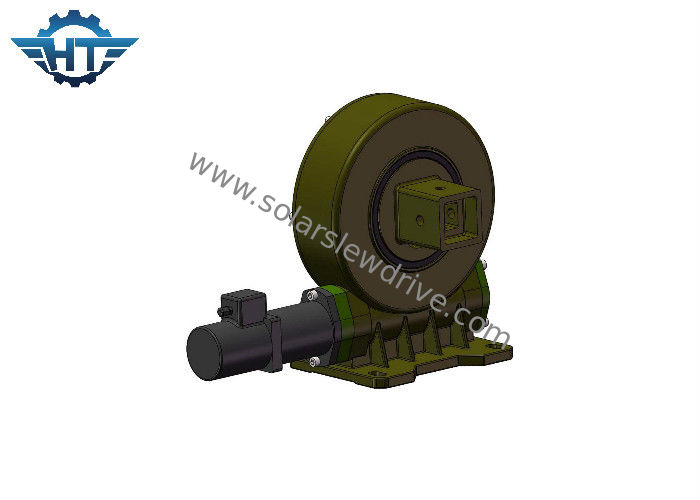

Vertical Small Slew Drive IP66 Protection Grade For Flat Single Axis Solar Tracker

Vertical Small Slew Drive IP66 Protection Grade For Flat Single Axis Solar Tracker

  • Vertical Small Slew Drive IP66 Protection Grade For Flat Single Axis Solar Tracker
  • Vertical Small Slew Drive IP66 Protection Grade For Flat Single Axis Solar Tracker
Vertical Small Slew Drive IP66 Protection Grade For Flat Single Axis Solar Tracker
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: 9 inch
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: 9 Inch
Gear Ratio: 61:1 Efficiency: 40%
Precise: ≤ 0.1 Axis: Vertical Single
Color: As Requested Holding Torque: 30800 Nm
High Light:

solar slew drive

,

slewing drive for solar tracking system



Vertical Small Slewing Drive IP66 Protection Grade For Flat Single Axis Solar Tracker



Description



slewing gears help make solar installations more effective and profitable by supporting movement in both single and dual-axis solar trackers. Moving enormous solar tracking systems requires slewing gearboxes that offer both multi-plane load-holding and rotational torque. Slewing drives that engage a greater number of teeth offer more contact and high and strong torque.



Vertical Small Slew Drive IP66 Protection Grade For Flat Single Axis Solar Tracker 0 Vertical Small Slew Drive IP66 Protection Grade For Flat Single Axis Solar Tracker 1



Application



The slewing drive solar trackers for solar industry.



Solar axis trackers move solar panels such that they get more solar access and create more power. They can be single axis or dual axis.



Our custom solutions for the solar industry help harness the sun’s power in an efficient and cost-effective manner. Our slewing drives and worm gear drives deliver the highest dynamic and static torque load capacity in a small package. In applications where pointing accuracy is critical, our double-enveloping worm gear technology provides precision and accuracy, with absolute zero backlash available.



Powered with hourglass worm technology for maximum gear torque and the smoothest rotation. The slew drive applications also include, truck cranes, man lifts, utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts, wind energy, satellite, robot etc.



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg
