Providing Innovative and Cost-effective Slewing Drives
 |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE9 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1100/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Place Of Origin: | Changzhou, China | Gear Ratio: | 61:1 |
|---|---|---|---|
| Normal Output Torque: | 4400 Nm | Holding Torque: | 30800 Nm |
| Tilting Torque: | 45000 Nm | Self-lock: | Yes |
| Usage: | Solar Trackers | Protect Feature: | IP66 |
| High Light: | solar slew drive,slewing drive for solar tracking system |
||

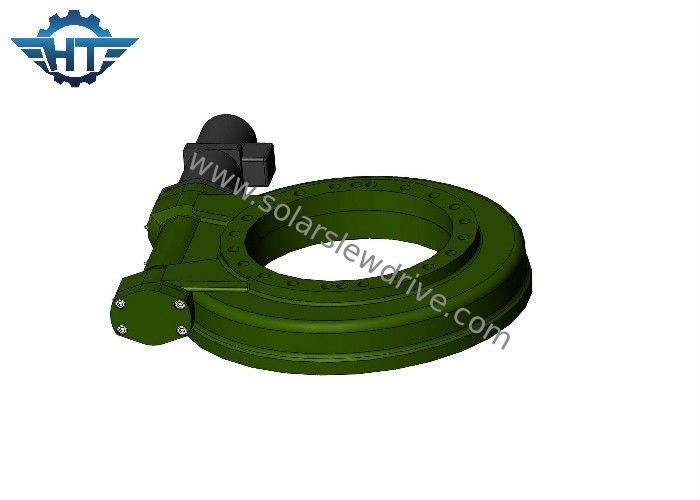

Slow Speed Small Solar Tracker Slewing Drive For Dual Axis Solar Tracking System
Description
Solar panels do not perform as well when the temperature increases, and roof mounted panels can get very hot due to poor ventilation. More heat, then less power. The solar time tracker allows for maximum air movement and cooler panels, meaning more energy and increased panel life.
The dual axis solar tracker generates up to 40% more electricity compared with a fixed mount system by positioning the solar PV panels perfectly with the sun all day long, every single day, in every season, and every weather condition. With a full 180 degree east to west and north to south tracking option to let the systems get maximum production.
It increases safety when it comes harsh conditions like snow, shower or hurricane. You can put your solar panel array into a safefy position.
Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
DC Motor
1. Adopt Dual supporting structure for output shaft so that the max torque of gearbox is increased a lot.
2. Sun wheel and planetary wheel are connected by spline which increase the max torque of gearbox and lengthen the life.
3. We use helical gear at input stage which make the noise low anf run smoothly in high speed. The inner gear ring is separated so that we can make more ratio and the design is flexible. Gearbox and motor are located by a seam fix by screw in axial which increase the matching precision and reduce noise.
4. We use rolling pin holder inside planetary wheel.we use rolling pin grinding instead of sliding grinding so the life of gearbox is much longer.
5. Double supporting structure; Internal grinding on inner bore of planetary gears making the inner bore roundness less than 0.003mm;running by rolling instead of sliding; HRC60 gear surface precision scraping;The adopting of all these technoligies ensure the super quiet and steady operating and a long life time over 10000 hours.
