Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE12 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Gear Ratio: | 78:1 | Efficiency: | 40% |
|---|---|---|---|
| Type: | Enclosed | Application: | Construction Machinery |
| OEM Service: | Available | Driver: | AC Motor |
| IP Grade: | IP66 | Color: | As Requested |
| High Light: | slewing drive for solar tracking system,solar tracker drive |
||

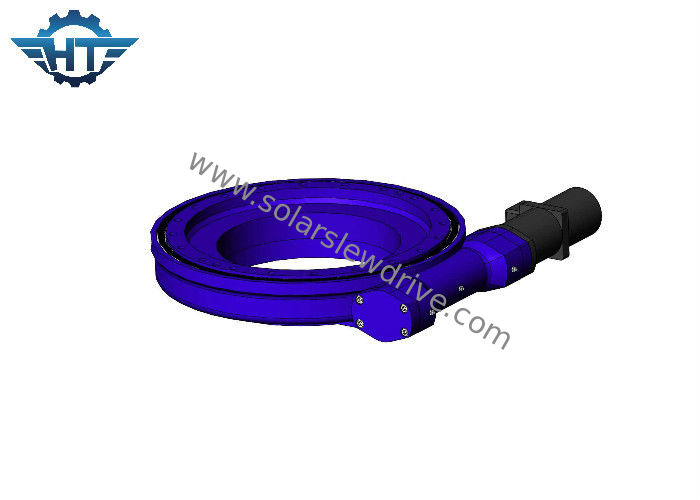

Outdoor Use Solar Tracker Slew Drive With Hydraulic Motor For Construction Machinery
Description
The slewing drive is widely used in ground-mount solar arrays which are typically installed in mostly flat open fields, especially on utility-scale projects. Certain solar markets have naturally level land, which makes installs simpler, but flat terrain isn’t always an option however. Some solar sites in mountain areas or hilly regions can undergo civil engineering to make level ground for mounting.
Solar trackers increases the performance of solar PV panels in the shoulder periods of the day, where a static fixed mount panel would only receive obscured sun exposure. This can be seen in the graphs of side by side solar tracking panels & static fixed panels.
Slewing Drive Application
Slewing drive for solar tracking system application include solar Concentrator Solar Dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic trough, PV tracker, of which the widely used application is solar tracking system. Before that, the slewing drives are mainly applied in Construction Machinery for trucks, plat form, mechinical transmission.
It can be also used in wind energy, satellite tracking, robot arm etc.
SE Performance Data
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62 |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85 |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141 |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182 |
Q&A
1. How can i choose?
Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the suitable gear motors
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
10 sets after samples confirmed
6. What's your delivery time?
For standard samples: within 7days; for batch orders: within 25 days.
