VE9 Solar Slew Drive, Hourglass Worm Gear For Horizontal Single Axis PV Panel Tracking System

Brand Name: HangTuo
Model Number: 9 inch
MOQ: 1 piece
Price: USD 100~1600/ pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Material:
50Mn, 42CrMo
Model:
9 Inch
Gear Ratio:
61:1
Precise:
≤ 0.1
Driver:
AC Motor
Color:
As Requested
Holding Torque:
30800 Nm
Package:
Plywood Case
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

slewing drive for solar tracking system

,

solar tracker drive

Product Description

Ve9 Solar Tracker Slew Drive With Hourglass Worm Gear For PV Panel Tracking System



Description



VE slewing drives also called vertical single axis slewing drive is a fully-enclosed, vertical drive that does not require other components for mounting. It can be easily installed on the plate by just four bolts. It is most commonly used in the center of single-axis solar trackers to hold the solar array sturdy in a high wind storm without breaking. It can be also installed at both side of the single axis solar tracking system.

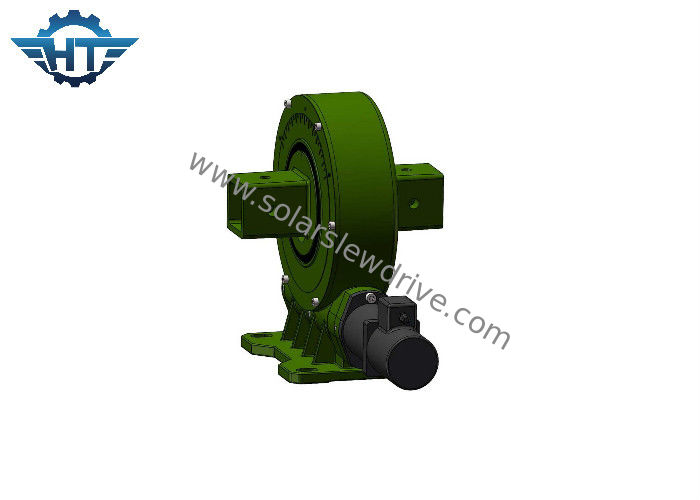

VE9 Solar Slew Drive, Hourglass Worm Gear For Horizontal Single Axis PV Panel Tracking System 0



Our slewing drive uses hourglass worm technology will offer the greatest level of strength and power thereby increasing field life and decreasing downtime.



VE Series Technical Sheet



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Application



We are committed to researching, developing and applying high quality slewing drives. We provides reliable mechanical slewing drives for horizonal single axis, dual-axis PV tracking system, CSP, CPV solar tracking design.Our professional and high-quality products will be also applied as a steady solution on aerial working platform, truck crane, timber grab, drilling rig, spray equipment, hydraulic module vehicle, automated assembly lines, wind yaw systems,etc.
