Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE12 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Gear Ratio: | 78:1 | Efficiency: | 40% |
|---|---|---|---|
| Self-lock: | Yes | Application: | Solar Tracker |
| OEM Service: | Available | Driver: | Planetary Motor |
| IP Grade: | IP66 | Color: | As Requested |
| Highlight: | slewing drive for solar tracking system,solar tracker drive |
||

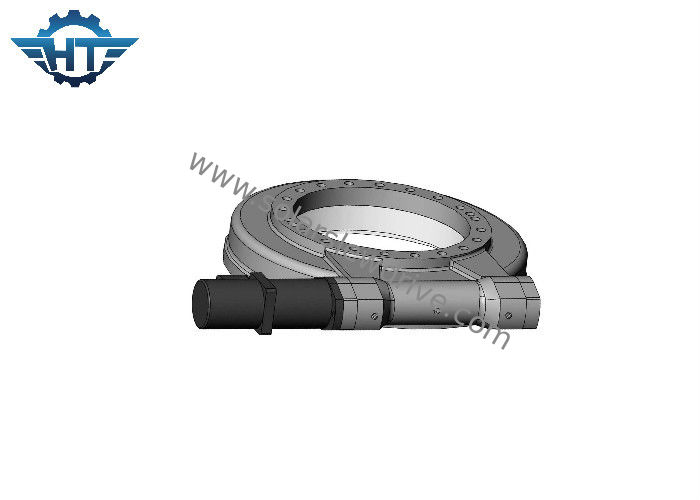

High Precision Slew Drive With Planetaty Motor For Horizontal Single Axis System
Description
The slew drive is applied in different types of solar trackers to accomplish a circular movement to the application.
Our Slew drives are for solar trackers designed to work in the harshest environments because of its high amount of security IP65 and IP66.
High rigidity, irreversibility and high torque are the primary top features of slew drives, additionally it is an element that allows us to accomplish zero backlash for accurate positioning and zero-maintenance cost.
Performance Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Advanced Research And Development
1. independent and complete development mechanism
2. 3D modeling software to conduct scientific analysis of load and production
3. Standard product design process:
3.1 customer technical inquirements
3.2 APQP&PPAP&FEMA analysis
3.3 3D model
3.4 simulation for slewing drive
3.5 production drawing and operation instructions
