Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE17 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Gear Ratio: | 102:1 | Efficiency: | 40% |
|---|---|---|---|
| Type: | Enclosed | Application: | Linkage System |
| OEM Service: | Available | Driver: | AC Motor |
| IP Grade: | IP66 | Color: | As Requested |
| High Light: | slewing drive for solar tracking system,solar tracker drive |
||

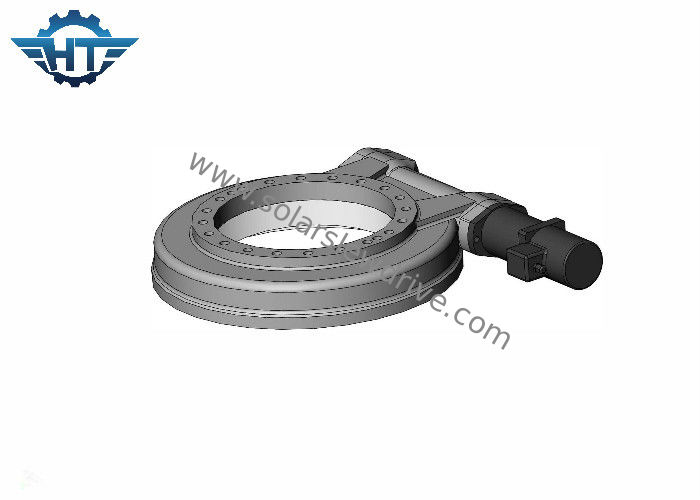

Self-locking Slew Drive With 24VDC Motor For Horizontal Single Axis Linkage System
Description
SE self-locking enclosed slewing drive help power movement across industries and are perfect for situations requiring both load-holding and rotational torque from the same gearbox.
Typical applications include solar trackers , wind turbines , satellite and radar dishes , truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
Quality Control
We has passed ISO90001: 2008 quality management system certification and got CE certificate also. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality.
We has complete testing equipment and advanced testing method. Testing equipment like UV test chamber, high-low temperture chamber, salt spray chamber, torque testing toolings. We have complete performance testings to ensure what we produced could meet clients' needs.
Our goal is ensure the quality with continuous improvement of the products.
Performance Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
