Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE17 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | SE17 | Certification: | ISO, CE |
|---|---|---|---|
| Protect: | Enclosed | Material: | 42CrMo Or 50Mn |
| Warranty: | 5~10 Years | Size: | 1 Inch To 25 Inch |
| Color: | Customer Required | Tilting Torque: | 135600 Nm |
| High Light: | slewing drive for solar tracking system,solar tracker drive |
||

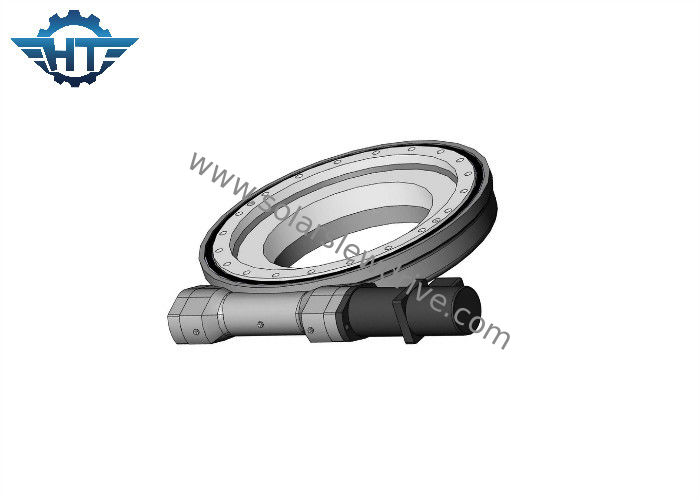

SE17 Helical Tooth Solar Tracker Slew Drive With IP65 24vdc Electric Motor For Solar Tracker
Description
A solar trackers maximizes the solar system’s electricity production by moving the panels to follow the sun throughout the day, which optimizes the angle at which your panels receive solar radiation. Solar trackers are typically used for ground-mounted large solar plant.
There are various types of single-axis type of solar collectors such as vertical single axis solar tracker, horizontal tracker, titled solar trackers etc. The SE slewing drives are widely used in single axis solar tracking system because of its high performance and easy installation.
SE Model Performance Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Advantages
Compared with fixed solar trackers, the tracking system:
1. generate more electricity than the stationary counterparts due to increased direct exposure to solar lights
2. there are many different kind of solar tracking systems which can be perfect fit for unique site
3. the tracking system is more fittable if there is land use limitation
4. improvement of technology and reliability in electronics and mechanics have drastically reduced long-term maintenance concerns for tracking systems
