|Place of Origin:||China|
|Minimum Order Quantity:||1 piece|
|Price:||USD 100~1600/ pc|
|Packaging Details:||plywood box|
|Delivery Time:||15~45 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||500 pcs per month|
|Material:||50Mn, 42CrMo||Output Torque:||800 Nm|
|OEM:||Available||Tilting Torque:||5000 Nm|
|Holding Torque:||9200 Nm||Installation Site:||Roof And Field|
|Feature:||Quick Installation||Motor:||12V/24V DC|
worm gear slew drive,
slewing ring gear

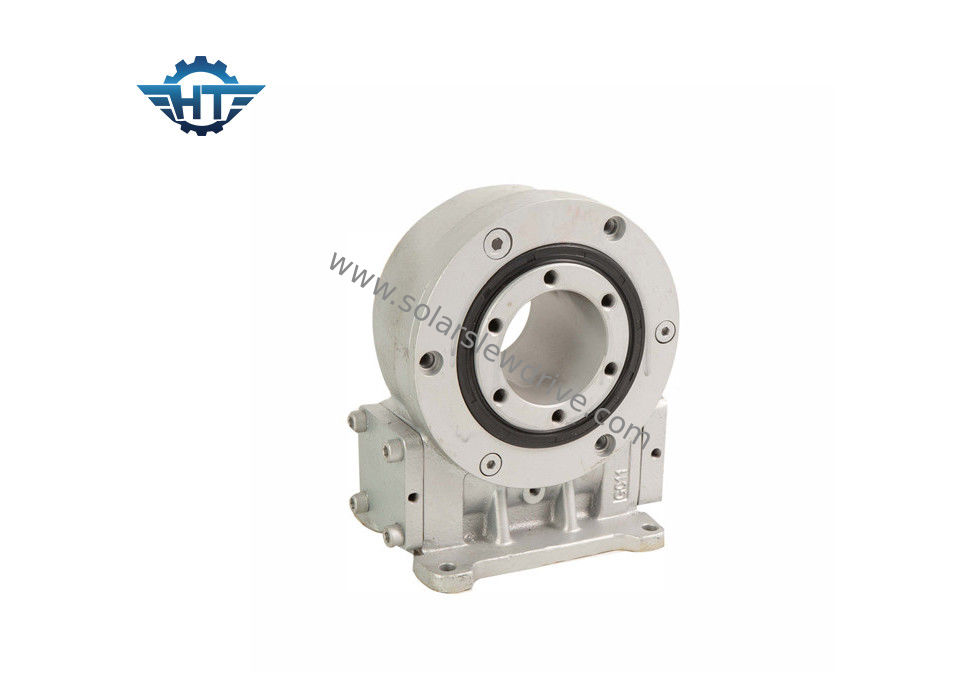

CE Marked VE5 Slew Drive Gearbox With Hourglass Worm For Flat Horizontal Single Axis Trackers
Successful slewing drives begin with excellent design and engineering. Our team has more than 10 years’ experience creating and constructing complex solar solutions for customers nationwide.
Sound quality management system. Further developments and solutions are based on technically sophisticated products.
1. quality control, includes incoming inspection, process inspection, finished goods inspection based on inspection points.
2. process control includes key process control and system management.
3. customer satisfaction
Customer's requirement is our top priority, we always closely focus on the Voice of Customer. For any customer claim,we will give the fast and effective action.
VE Type Data Sheet
|Model||Ratio||Rated Output Torque(N.m)||Tilting Torque(N.m)||Holding Torque(N.m)||Axial Load(kN)||Radial Load(kN)||Efficiency||Self-locking||Weight(kg)|
Transport, handling and storage
Transport only in horizontal position, impacts should be avoided. Wear work gloves and be careful when handling the slew drive. Use the holes of the rings in the slew drives to fix bolts for safe hoisting, handling and placement. Store only in a horizontal position and in closed rooms, keep it away from getting wet, the surface corrosion protection of exposed mating surfaces lasts approximately 1 month in closed packaging. Longer period storage requires special protective measures.
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
Express: door to door, just need to pay the import tax if required by the custom.
By air or by sea: factory to destination airport/sea port, need pay destination fee charged by the airport(the destination fee is always charged by per B/L regardless of the package is big, small, heavy or light, in gerneral 200~400 USD per cargo) and import tax if required by the custom.
By train: sometimes the shipping price is the same as sea but taking less shipping time than sea, we will take this shipping way into consideration if the goods are in urgent need by our clients.
