Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Material: | 50Mn, 42CrMo | Warranty: | 10 Years |
|---|---|---|---|
| Service: | OEM Design | Axis: | Single Axis |
| Size: | Clients' Requirements | Installation Site: | Roof And Field |
| Packaging: | Plywood | Motor: | ISO9001, CE |
| High Light: | worm gear slew drive,slewing ring gear |
||

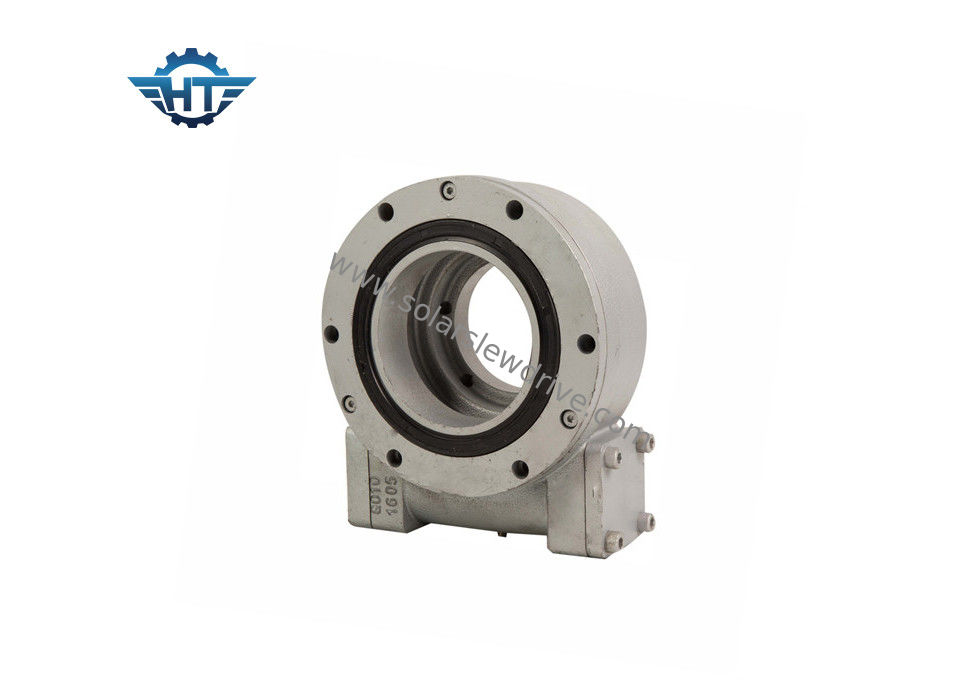

Durable Slewing Drive Gearbox For Horizontal Single Axis And Tilted Single Axis Solar Trackers
Description
We have our own factory equipped with assembly line. We have our self-hold casting factory, machining factory, worm factory and painting factory, those in whole make sure smooth supply of our products- slewing drives.
We also have sound stock management, so make it possible to realize a short delivery times. Sample lead time in one week, new developed model, 45~60 days. If in bulk, our normal lead time is 30~60 days.
The following points should be taken into account to choose the proper series slewing drives for each application. There are three types of slewing drives, horizontal slewing drives, vertical slewing drives and dual axis slewing drives.
Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Application
Slewing drives can be widely used for solar tracking system, CPV, CSP, HCPV, wind turbines, concentrated solar power stations, heliostat, tower heating, parabolic, fresnel, satellite antenna dish. Slewing drives can be also used on construction machinery, truck cranes, harbor machinery etc. Those products are designed for long life, working in hard environmental conditions.
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
Note:
Express: door to door, just need to pay the import tax if required by the custom.
By air or by sea: factory to destination airport/sea port, need pay destination fee charged by the airport(the destination fee is always charged by per B/L regardless of the package is big, small, heavy or light, in gerneral 200~400 USD per cargo) and import tax if required by the custom.
By train: sometimes the shipping price is the same as sea but taking less shipping time than sea, we will take this shipping way into consideration if the goods are in urgent need by our clients.
