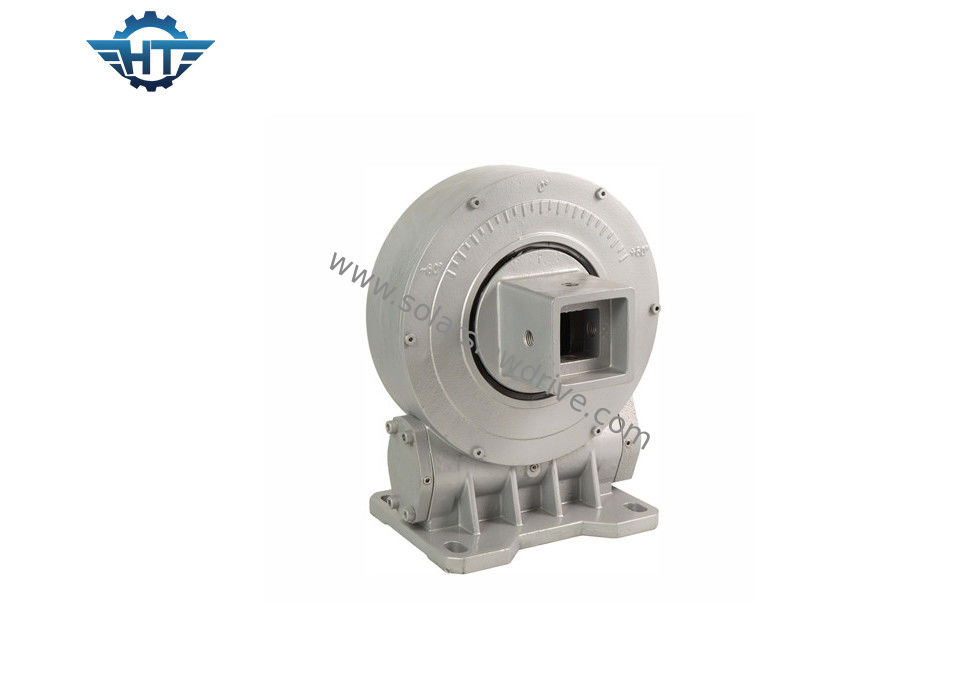

Vertical 9 Inch Slew Drive Gearbox With Envelop Worm And 0.05° High Precision For Parabolic
Description
Single axis vertical slew drive will let the single axis solar tracker system orients toward the sun to track sun in east-west direction. The single axis solar tracking system is suitable for lower latitudes with high sun height angle. Its power generation efficiency is 10~20% higher than fixed sun panel tracking. The solar tracking system can be installed at ground level or roof. Single axis solar tracker includes, mounting bracket for solar cell panel, horizontal shaft, rotation drive mechanism, wind speed detection device and tracking controller. Single axis solar tracker has one degree of freedom that acts as an axis of rotation. The axis of rotation of single axis trackers is typically aligned along a true North meridian. It is possible to align them in any cardinal direction with advanced tracking algorithm.
Features
The vertical single slew drive can be applied in multi-linkage, to support the system in a stable movement, excellent in cost, and suitable for large scale PV plant.
Maintenance free design. Our slewing drive can effectively prevent the erosion caused by sand, dust, rain and snow.
Self-locking design. Our new designed self-locking slewing drive can make the whole system more safety in case of sudden occasions.
VE Model Technical Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
